Definition Type: Group
Name: NavigationSystemCheckpointPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd
Collapse XSD Schema Diagram:

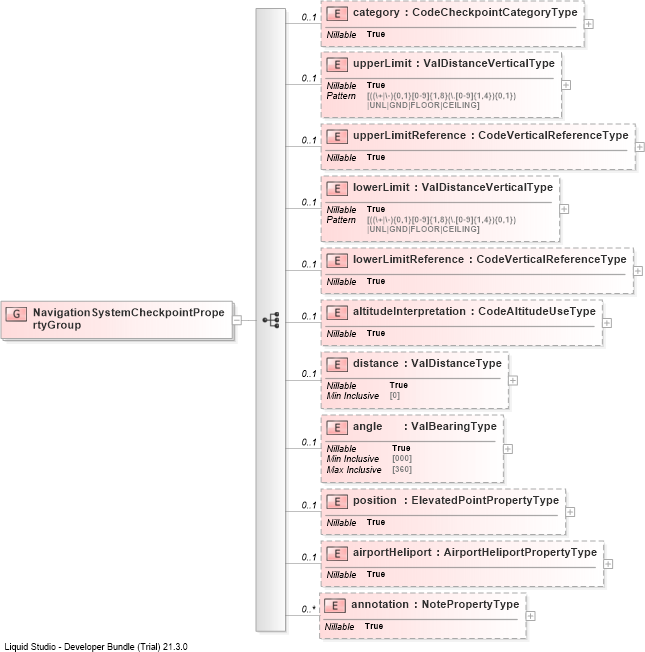

Drilldown into annotationDrilldown into airportHeliportDrilldown into positionDrilldown into angleDrilldown into distanceDrilldown into altitudeInterpretationDrilldown into lowerLimitReferenceDrilldown into lowerLimitDrilldown into upperLimitReferenceDrilldown into upperLimitDrilldown into categoryXSD Diagram of NavigationSystemCheckpointPropertyGroup
Collapse XSD Schema Code:
<group name="NavigationSystemCheckpointPropertyGroup">
    <sequence>
        <element name="category" type="aixm:CodeCheckpointCategoryType" nillable="true" minOccurs="0" />
        <element name="upperLimit" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="upperLimitReference" type="aixm:CodeVerticalReferenceType" nillable="true" minOccurs="0" />
        <element name="lowerLimit" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="lowerLimitReference" type="aixm:CodeVerticalReferenceType" nillable="true" minOccurs="0" />
        <element name="altitudeInterpretation" type="aixm:CodeAltitudeUseType" nillable="true" minOccurs="0" />
        <element name="distance" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="angle" type="aixm:ValBearingType" nillable="true" minOccurs="0" />
        <element name="position" type="aixm:ElevatedPointPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="airportHeliport" type="aixm:AirportHeliportPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
category aixm:category 0 (1)
upperLimit aixm:upperLimit 0 (1)
upperLimitReference aixm:upperLimitReference 0 (1)
lowerLimit aixm:lowerLimit 0 (1)
lowerLimitReference aixm:lowerLimitReference 0 (1)
altitudeInterpretation aixm:altitudeInterpretation 0 (1)
distance aixm:distance 0 (1)
angle aixm:angle 0 (1)
position aixm:position 0 1
airportHeliport aixm:airportHeliport 0 1
annotation aixm:annotation 0 unbounded
