Documentation for AIXM 5.1.1
Definition Type: Group
Name: NonMovementAreaPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

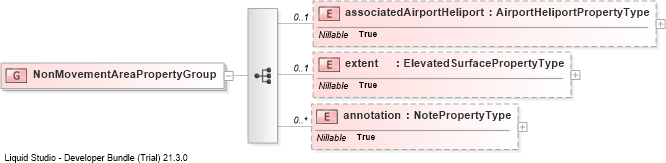

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into extentDrilldown into associatedAirportHeliportXSD Diagram of NonMovementAreaPropertyGroup
Collapse XSD Schema Code:
<group name="NonMovementAreaPropertyGroup">
    <sequence>
        <element name="associatedAirportHeliport" type="aixm:AirportHeliportPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="extent" type="aixm:ElevatedSurfacePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
associatedAirportHeliport aixm:associatedAirportHeliport 0 1
extent aixm:extent 0 1
annotation aixm:annotation 0 unbounded
