Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: ObjectReference_PropertyType
Namespace: http://www.isotc211.org/2005/gco
Containing Schema: gcoBase.xsd
Abstract

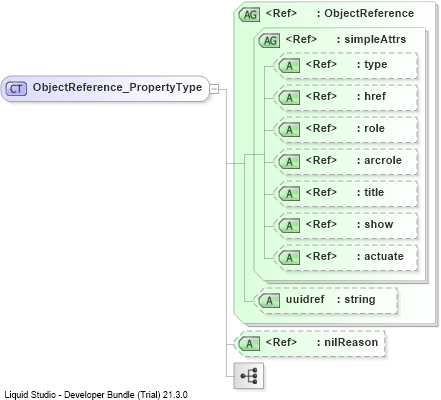

Collapse XSD Schema Diagram:
Drilldown into nilReasonDrilldown into uuidrefDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into ObjectReferenceXSD Diagram of ObjectReference_PropertyType
Collapse XSD Schema Code:
<xs:complexType name="ObjectReference_PropertyType">
    <xs:sequence />
    <xs:attributeGroup ref="gco:ObjectReference" />
    <xs:attribute ref="gco:nilReason" />
</xs:complexType>
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
uuidref gco:uuidref (Optional)
nilReason gco:nilReason (Optional)
Collapse Derivation Tree:
Collapse References:
gmd:attributeInstances, gmd:attributes, gmd:featureAttribute, gmd:featureInstances, gmd:features, gmd:featureType, gmd:LocalisedCharacterString_PropertyType, gmd:propertyType
