Definition Type: Group
Name: ObstacleAreaPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

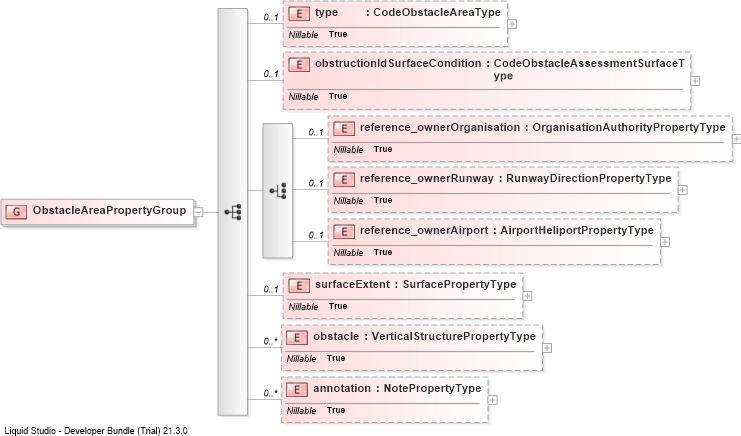

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into obstacleDrilldown into surfaceExtentDrilldown into reference_ownerAirportDrilldown into reference_ownerRunwayDrilldown into reference_ownerOrganisationDrilldown into obstructionIdSurfaceConditionDrilldown into typeXSD Diagram of ObstacleAreaPropertyGroup
Collapse XSD Schema Code:
<group name="ObstacleAreaPropertyGroup">
    <sequence>
        <element name="type" type="aixm:CodeObstacleAreaType" nillable="true" minOccurs="0" />
        <element name="obstructionIdSurfaceCondition" type="aixm:CodeObstacleAssessmentSurfaceType" nillable="true" minOccurs="0" />
        <choice>
            <element name="reference_ownerOrganisation" type="aixm:OrganisationAuthorityPropertyType" nillable="true" minOccurs="0" />
            <element name="reference_ownerRunway" type="aixm:RunwayDirectionPropertyType" nillable="true" minOccurs="0" />
            <element name="reference_ownerAirport" type="aixm:AirportHeliportPropertyType" nillable="true" minOccurs="0" />
        </choice>
        <element name="surfaceExtent" type="aixm:SurfacePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="obstacle" type="aixm:VerticalStructurePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
type aixm:type 0 (1)
obstructionIdSurfaceCondition aixm:obstructionIdSurfaceCondition 0 (1)
reference_ownerOrganisation aixm:reference_ownerOrganisation 0 (1)
reference_ownerRunway aixm:reference_ownerRunway 0 (1)
reference_ownerAirport aixm:reference_ownerAirport 0 (1)
surfaceExtent aixm:surfaceExtent 0 1
obstacle aixm:obstacle 0 unbounded
annotation aixm:annotation 0 unbounded
