Definition Type: Group
Name: ObstacleAssessmentAreaPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

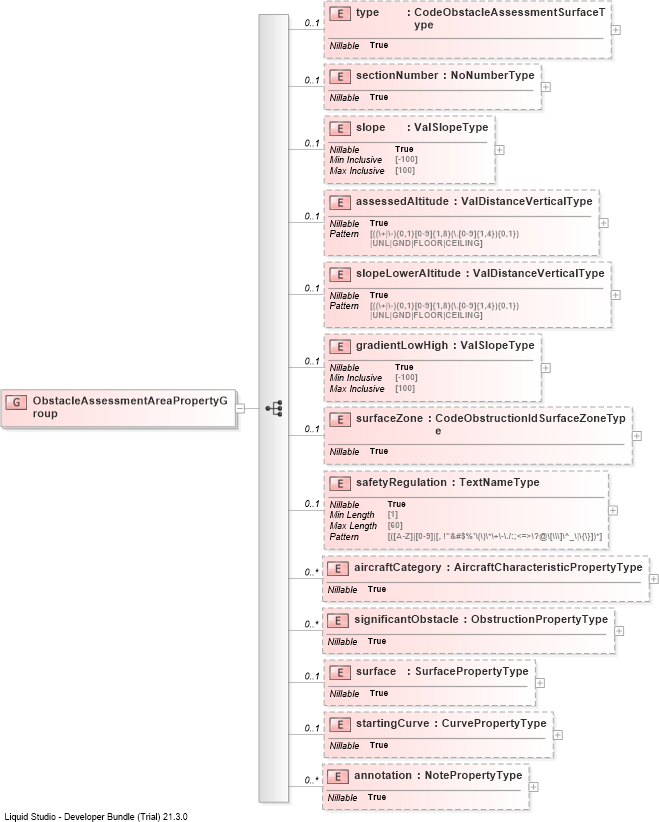

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into startingCurveDrilldown into surfaceDrilldown into significantObstacleDrilldown into aircraftCategoryDrilldown into safetyRegulationDrilldown into surfaceZoneDrilldown into gradientLowHighDrilldown into slopeLowerAltitudeDrilldown into assessedAltitudeDrilldown into slopeDrilldown into sectionNumberDrilldown into typeXSD Diagram of ObstacleAssessmentAreaPropertyGroup
Collapse XSD Schema Code:
<group name="ObstacleAssessmentAreaPropertyGroup">
    <sequence>
        <element name="type" type="aixm:CodeObstacleAssessmentSurfaceType" nillable="true" minOccurs="0" />
        <element name="sectionNumber" type="aixm:NoNumberType" nillable="true" minOccurs="0" />
        <element name="slope" type="aixm:ValSlopeType" nillable="true" minOccurs="0" />
        <element name="assessedAltitude" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="slopeLowerAltitude" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="gradientLowHigh" type="aixm:ValSlopeType" nillable="true" minOccurs="0" />
        <element name="surfaceZone" type="aixm:CodeObstructionIdSurfaceZoneType" nillable="true" minOccurs="0" />
        <element name="safetyRegulation" type="aixm:TextNameType" nillable="true" minOccurs="0" />
        <element name="aircraftCategory" type="aixm:AircraftCharacteristicPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="significantObstacle" type="aixm:ObstructionPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="surface" type="aixm:SurfacePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="startingCurve" type="aixm:CurvePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
type aixm:type 0 (1)
sectionNumber aixm:sectionNumber 0 (1)
slope aixm:slope 0 (1)
assessedAltitude aixm:assessedAltitude 0 (1)
slopeLowerAltitude aixm:slopeLowerAltitude 0 (1)
gradientLowHigh aixm:gradientLowHigh 0 (1)
surfaceZone aixm:surfaceZone 0 (1)
safetyRegulation aixm:safetyRegulation 0 (1)
aircraftCategory aixm:aircraftCategory 0 unbounded
significantObstacle aixm:significantObstacle 0 unbounded
surface aixm:surface 0 1
startingCurve aixm:startingCurve 0 1
annotation aixm:annotation 0 unbounded
