Documentation for AIXM 5.1.1
Definition Type: Group
Name: ObstaclePlacementPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

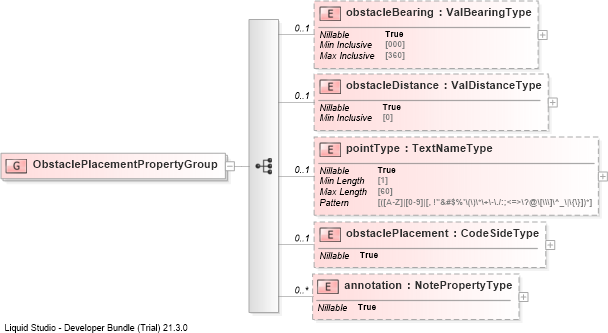

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into obstaclePlacementDrilldown into pointTypeDrilldown into obstacleDistanceDrilldown into obstacleBearingXSD Diagram of ObstaclePlacementPropertyGroup
Collapse XSD Schema Code:
<group name="ObstaclePlacementPropertyGroup">
    <sequence>
        <element name="obstacleBearing" type="aixm:ValBearingType" nillable="true" minOccurs="0" />
        <element name="obstacleDistance" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="pointType" type="aixm:TextNameType" nillable="true" minOccurs="0" />
        <element name="obstaclePlacement" type="aixm:CodeSideType" nillable="true" minOccurs="0" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
obstacleBearing aixm:obstacleBearing 0 (1)
obstacleDistance aixm:obstacleDistance 0 (1)
pointType aixm:pointType 0 (1)
obstaclePlacement aixm:obstaclePlacement 0 (1)
annotation aixm:annotation 0 unbounded
