Documentation for AIXM 5.1.1
Definition Type: Group
Name: ObstructionPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

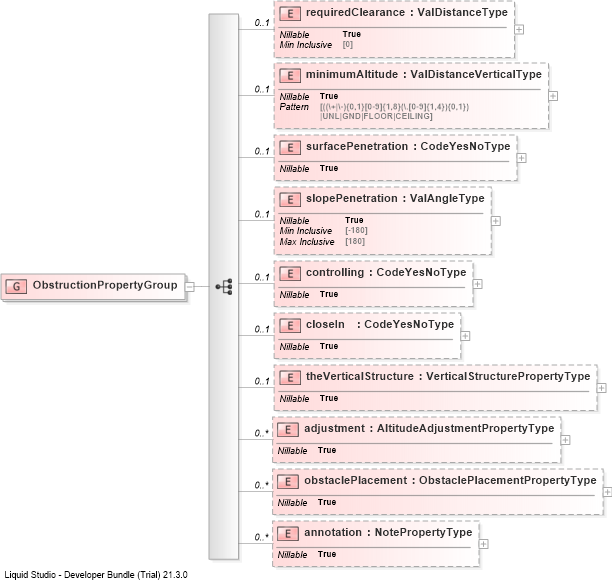

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into obstaclePlacementDrilldown into adjustmentDrilldown into theVerticalStructureDrilldown into closeInDrilldown into controllingDrilldown into slopePenetrationDrilldown into surfacePenetrationDrilldown into minimumAltitudeDrilldown into requiredClearanceXSD Diagram of ObstructionPropertyGroup
Collapse XSD Schema Code:
<group name="ObstructionPropertyGroup">
    <sequence>
        <element name="requiredClearance" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="minimumAltitude" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="surfacePenetration" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="slopePenetration" type="aixm:ValAngleType" nillable="true" minOccurs="0" />
        <element name="controlling" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="closeIn" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="theVerticalStructure" type="aixm:VerticalStructurePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="adjustment" type="aixm:AltitudeAdjustmentPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="obstaclePlacement" type="aixm:ObstaclePlacementPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
requiredClearance aixm:requiredClearance 0 (1)
minimumAltitude aixm:minimumAltitude 0 (1)
surfacePenetration aixm:surfacePenetration 0 (1)
slopePenetration aixm:slopePenetration 0 (1)
controlling aixm:controlling 0 (1)
closeIn aixm:closeIn 0 (1)
theVerticalStructure aixm:theVerticalStructure 0 1
adjustment aixm:adjustment 0 unbounded
obstaclePlacement aixm:obstaclePlacement 0 unbounded
annotation aixm:annotation 0 unbounded
