Documentation for AIXM 5.1.1
Definition Type: Element
Name: OperationMethod
Namespace: http://www.opengis.net/gml/3.2
Type: gml:OperationMethodType
Containing Schema: coordinateOperations.xsd
Abstract
Documentation:
gml:OperationMethod is a method (algorithm or procedure) used to perform a coordinate operation. Most operation methods use a number of operation parameters, although some coordinate conversions use none. Each coordinate operation using the method assigns values to these parameters.
The parameter elements are an unordered list of associations to the set of operation parameters and parameter groups used by this operation method.

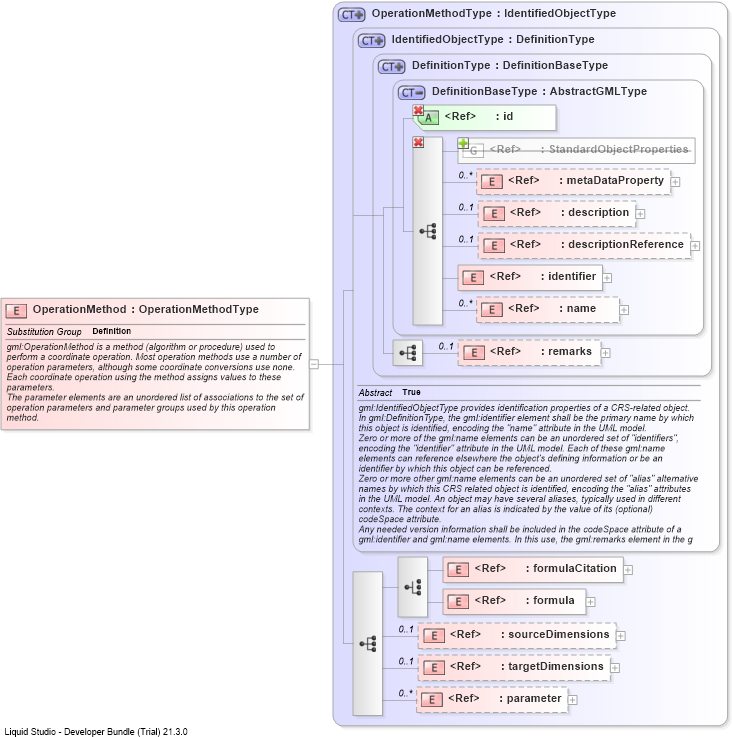

Collapse XSD Schema Diagram:
Drilldown into parameterDrilldown into targetDimensionsDrilldown into sourceDimensionsDrilldown into formulaDrilldown into formulaCitationDrilldown into remarksDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into DefinitionBaseTypeDrilldown into DefinitionTypeDrilldown into IdentifiedObjectTypeDrilldown into OperationMethodTypeXSD Diagram of OperationMethod
Collapse XSD Schema Code:
<element name="OperationMethod" type="gml:OperationMethodType" substitutionGroup="gml:Definition">
    <annotation>
        <documentation>gml:OperationMethod is a method (algorithm or procedure) used to perform a coordinate operation. Most operation methods use a number of operation parameters, although some coordinate conversions use none. Each coordinate operation using the method assigns values to these parameters.
The parameter elements are an unordered list of associations to the set of operation parameters and parameter groups used by this operation method.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier (1) (1)
name gml:name 0 unbounded
remarks gml:remarks 0 (1)
formulaCitation gml:formulaCitation (1) (1)
formula gml:formula (1) (1)
sourceDimensions gml:sourceDimensions 0 (1)
targetDimensions gml:targetDimensions 0 (1)
parameter gml:parameter 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gml:Definition
