Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: OperationParameterGroupPropertyType
Namespace: http://www.opengis.net/gml/3.2
Containing Schema: coordinateOperations.xsd
Abstract
Documentation:
gml:OperationParameterPropertyType is a property type for association roles to an operation parameter group, either referencing or containing the definition of that parameter group.

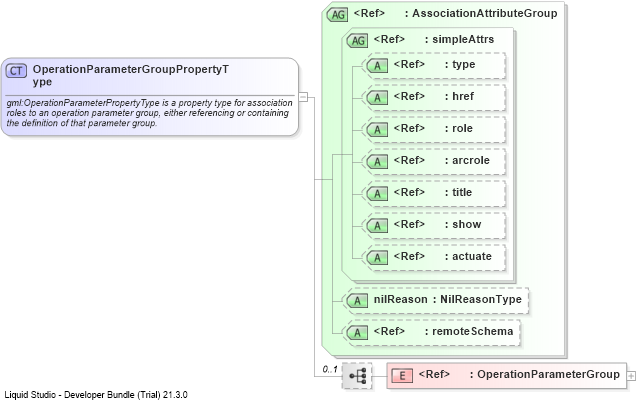

Collapse XSD Schema Diagram:
Drilldown into OperationParameterGroupDrilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupXSD Diagram of OperationParameterGroupPropertyType
Collapse XSD Schema Code:
<complexType name="OperationParameterGroupPropertyType">
    <annotation>
        <documentation>gml:OperationParameterPropertyType is a property type for association roles to an operation parameter group, either referencing or containing the definition of that parameter group.</documentation>
    </annotation>
    <sequence minOccurs="0">
        <element ref="gml:OperationParameterGroup" />
    </sequence>
    <attributeGroup ref="gml:AssociationAttributeGroup" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OperationParameterGroup gml:OperationParameterGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
Collapse Derivation Tree:
Collapse References:
gml:group, gml:valuesOfGroup
