Documentation for AIXM 5.1.1
Definition Type: Group
Name: OrganisationAuthorityPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

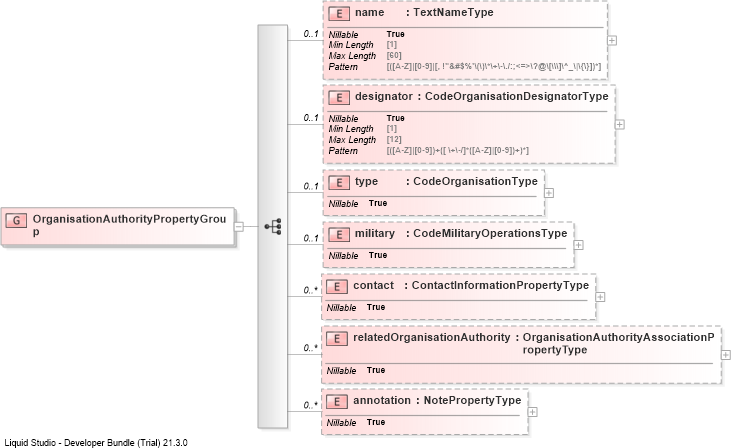

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into relatedOrganisationAuthorityDrilldown into contactDrilldown into militaryDrilldown into typeDrilldown into designatorDrilldown into nameXSD Diagram of OrganisationAuthorityPropertyGroup
Collapse XSD Schema Code:
<group name="OrganisationAuthorityPropertyGroup">
    <sequence>
        <element name="name" type="aixm:TextNameType" nillable="true" minOccurs="0" />
        <element name="designator" type="aixm:CodeOrganisationDesignatorType" nillable="true" minOccurs="0" />
        <element name="type" type="aixm:CodeOrganisationType" nillable="true" minOccurs="0" />
        <element name="military" type="aixm:CodeMilitaryOperationsType" nillable="true" minOccurs="0" />
        <element name="contact" type="aixm:ContactInformationPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="relatedOrganisationAuthority" type="aixm:OrganisationAuthorityAssociationPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name aixm:name 0 (1)
designator aixm:designator 0 (1)
type aixm:type 0 (1)
military aixm:military 0 (1)
contact aixm:contact 0 unbounded
relatedOrganisationAuthority aixm:relatedOrganisationAuthority 0 unbounded
annotation aixm:annotation 0 unbounded
