Documentation for AIXM 5.1.1
Definition Type: Group
Name: PilotControlledLightingPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

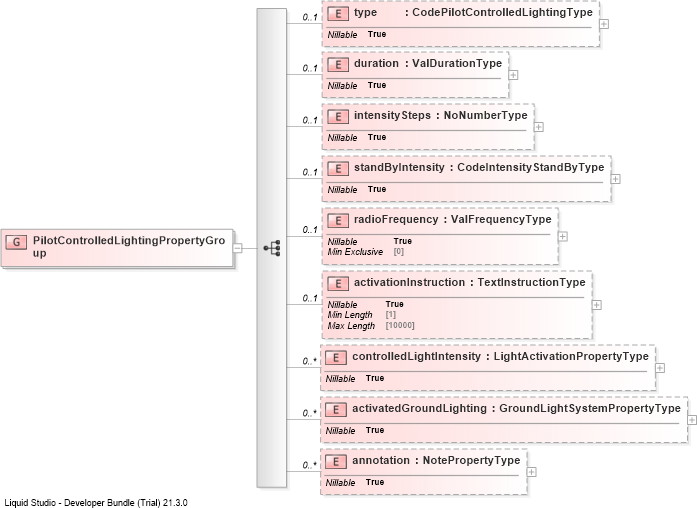

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into activatedGroundLightingDrilldown into controlledLightIntensityDrilldown into activationInstructionDrilldown into radioFrequencyDrilldown into standByIntensityDrilldown into intensityStepsDrilldown into durationDrilldown into typeXSD Diagram of PilotControlledLightingPropertyGroup
Collapse XSD Schema Code:
<group name="PilotControlledLightingPropertyGroup">
    <sequence>
        <element name="type" type="aixm:CodePilotControlledLightingType" nillable="true" minOccurs="0" />
        <element name="duration" type="aixm:ValDurationType" nillable="true" minOccurs="0" />
        <element name="intensitySteps" type="aixm:NoNumberType" nillable="true" minOccurs="0" />
        <element name="standByIntensity" type="aixm:CodeIntensityStandByType" nillable="true" minOccurs="0" />
        <element name="radioFrequency" type="aixm:ValFrequencyType" nillable="true" minOccurs="0" />
        <element name="activationInstruction" type="aixm:TextInstructionType" nillable="true" minOccurs="0" />
        <element name="controlledLightIntensity" type="aixm:LightActivationPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="activatedGroundLighting" type="aixm:GroundLightSystemPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
type aixm:type 0 (1)
duration aixm:duration 0 (1)
intensitySteps aixm:intensitySteps 0 (1)
standByIntensity aixm:standByIntensity 0 (1)
radioFrequency aixm:radioFrequency 0 (1)
activationInstruction aixm:activationInstruction 0 (1)
controlledLightIntensity aixm:controlledLightIntensity 0 unbounded
activatedGroundLighting aixm:activatedGroundLighting 0 unbounded
annotation aixm:annotation 0 unbounded
