Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: PointArrayPropertyType
Namespace: http://www.opengis.net/gml/3.2
Containing Schema: geometryBasic0d1d.xsd
Abstract
Documentation:
gml:PointArrayPropertyType is a container for an array of points. The elements are always contained inline in the array property, referencing geometry elements or arrays of geometry elements via XLinks is not supported.

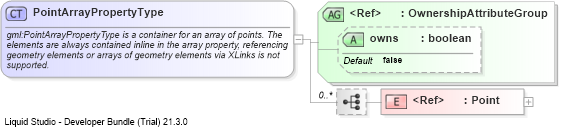

Collapse XSD Schema Diagram:
Drilldown into PointDrilldown into ownsDrilldown into OwnershipAttributeGroupXSD Diagram of PointArrayPropertyType
Collapse XSD Schema Code:
<complexType name="PointArrayPropertyType">
    <annotation>
        <documentation>gml:PointArrayPropertyType is a container for an array of points. The elements are always contained inline in the array property, referencing geometry elements or arrays of geometry elements via XLinks is not supported.</documentation>
    </annotation>
    <sequence minOccurs="0" maxOccurs="unbounded">
        <element ref="gml:Point" />
    </sequence>
    <attributeGroup ref="gml:OwnershipAttributeGroup" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Point gml:Point (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
owns gml:owns false (Optional)
Collapse Derivation Tree:
Collapse References:
gml:pointArrayProperty, gml:pointMembers
