Documentation for AIXM 5.1.1
Definition Type: Element
Name: PointReference
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:PointReferenceType
Containing Schema: AIXM_Features.xsd
Abstract

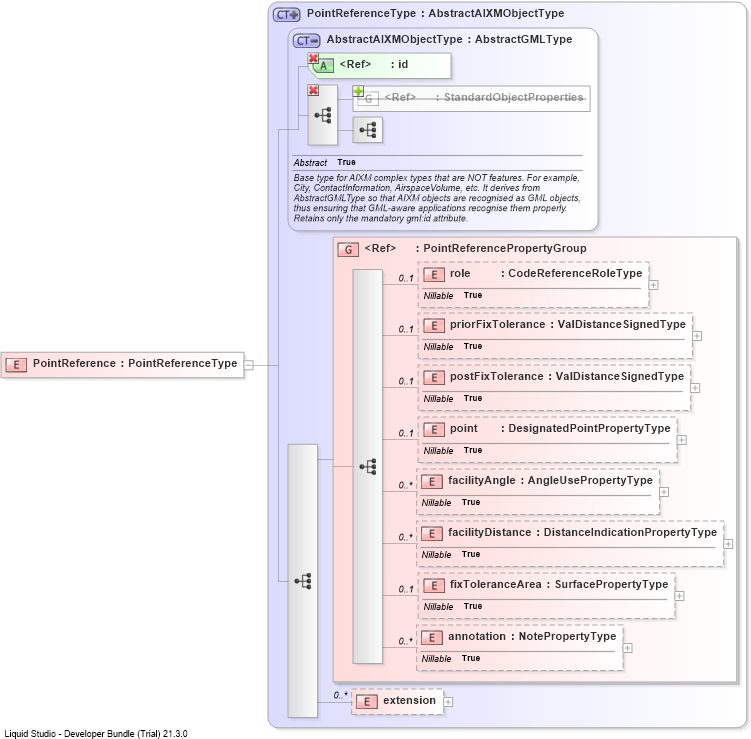

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into annotationDrilldown into fixToleranceAreaDrilldown into facilityDistanceDrilldown into facilityAngleDrilldown into pointDrilldown into postFixToleranceDrilldown into priorFixToleranceDrilldown into roleDrilldown into PointReferencePropertyGroupDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMObjectTypeDrilldown into PointReferenceTypeXSD Diagram of PointReference
Collapse XSD Schema Code:
<element name="PointReference" type="aixm:PointReferenceType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
role aixm:role 0 (1)
priorFixTolerance aixm:priorFixTolerance 0 (1)
postFixTolerance aixm:postFixTolerance 0 (1)
point aixm:point 0 1
facilityAngle aixm:facilityAngle 0 unbounded
facilityDistance aixm:facilityDistance 0 unbounded
fixToleranceArea aixm:fixToleranceArea 0 1
annotation aixm:annotation 0 unbounded
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:PointReferencePropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
