Documentation for AIXM 5.1.1
Definition Type: Element
Name: PolygonPatch
Namespace: http://www.opengis.net/gml/3.2
Type: gml:PolygonPatchType
Containing Schema: geometryPrimitives.xsd
Abstract
Documentation:
A gml:PolygonPatch is a surface patch that is defined by a set of boundary curves and an underlying surface to which these curves adhere. The curves shall be coplanar and the polygon uses planar interpolation in its interior.
interpolation is fixed to "planar", i.e. an interpolation shall return points on a single plane. The boundary of the patch shall be contained within that plane.

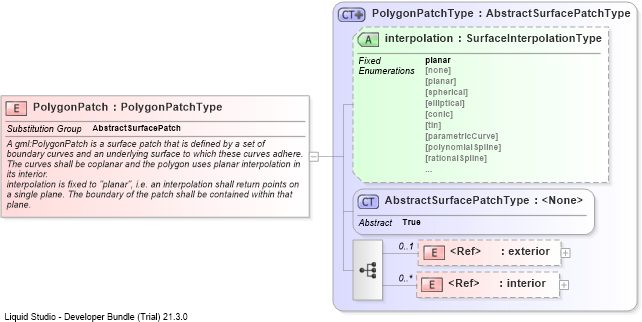

Collapse XSD Schema Diagram:
Drilldown into interiorDrilldown into exteriorDrilldown into AbstractSurfacePatchTypeDrilldown into interpolationDrilldown into PolygonPatchTypeXSD Diagram of PolygonPatch
Collapse XSD Schema Code:
<element name="PolygonPatch" type="gml:PolygonPatchType" substitutionGroup="gml:AbstractSurfacePatch">
    <annotation>
        <documentation>A gml:PolygonPatch is a surface patch that is defined by a set of boundary curves and an underlying surface to which these curves adhere. The curves shall be coplanar and the polygon uses planar interpolation in its interior.
interpolation is fixed to "planar", i.e. an interpolation shall return points on a single plane. The boundary of the patch shall be contained within that plane.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
exterior gml:exterior 0 (1)
interior gml:interior 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
interpolation gml:interpolation (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractSurfacePatch
