Documentation for AIXM 5.1.1
Definition Type: Element
Name: PolyhedralSurface
Namespace: http://www.opengis.net/gml/3.2
Type: gml:SurfaceType
Containing Schema: geometryPrimitives.xsd
Abstract
Documentation:
A polyhedral surface is a surface composed of polygon patches connected along their common boundary curves. This differs from the surface type only in the restriction on the types of surface patches acceptable.
polygonPatches encapsulates the polygon patches of the polyhedral surface.

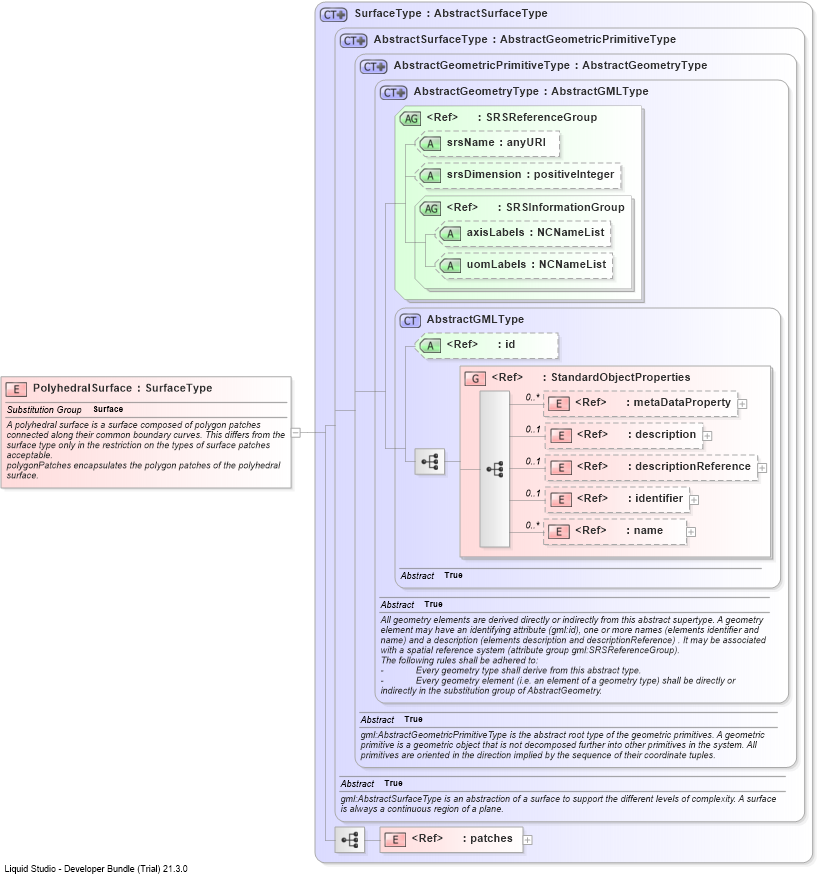

Collapse XSD Schema Diagram:
Drilldown into patchesDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractGMLTypeDrilldown into uomLabelsDrilldown into axisLabelsDrilldown into SRSInformationGroupDrilldown into srsDimensionDrilldown into srsNameDrilldown into SRSReferenceGroupDrilldown into AbstractGeometryTypeDrilldown into AbstractGeometricPrimitiveTypeDrilldown into AbstractSurfaceTypeDrilldown into SurfaceTypeXSD Diagram of PolyhedralSurface
Collapse XSD Schema Code:
<element name="PolyhedralSurface" type="gml:SurfaceType" substitutionGroup="gml:Surface">
    <annotation>
        <documentation>A polyhedral surface is a surface composed of polygon patches connected along their common boundary curves. This differs from the surface type only in the restriction on the types of surface patches acceptable.
polygonPatches encapsulates the polygon patches of the polyhedral surface.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
patches gml:patches (1) (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
srsName gml:srsName (Optional)
srsDimension gml:srsDimension (Optional)
axisLabels gml:axisLabels (Optional)
uomLabels gml:uomLabels (Optional)
Collapse Derivation Tree:
Collapse References:
gml:Surface
