Definition Type: Group
Name: ProcedurePropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

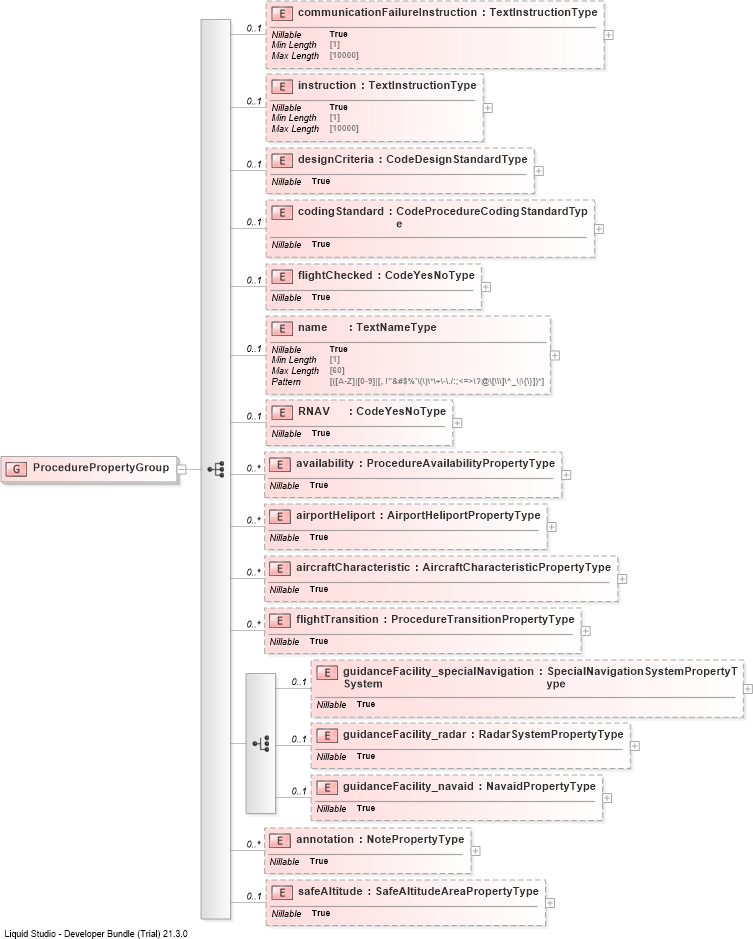

Collapse XSD Schema Diagram:
Drilldown into safeAltitudeDrilldown into annotationDrilldown into guidanceFacility_navaidDrilldown into guidanceFacility_radarDrilldown into guidanceFacility_specialNavigationSystemDrilldown into flightTransitionDrilldown into aircraftCharacteristicDrilldown into airportHeliportDrilldown into availabilityDrilldown into RNAVDrilldown into nameDrilldown into flightCheckedDrilldown into codingStandardDrilldown into designCriteriaDrilldown into instructionDrilldown into communicationFailureInstructionXSD Diagram of ProcedurePropertyGroup
Collapse XSD Schema Code:
<group name="ProcedurePropertyGroup">
    <sequence>
        <element name="communicationFailureInstruction" type="aixm:TextInstructionType" nillable="true" minOccurs="0" />
        <element name="instruction" type="aixm:TextInstructionType" nillable="true" minOccurs="0" />
        <element name="designCriteria" type="aixm:CodeDesignStandardType" nillable="true" minOccurs="0" />
        <element name="codingStandard" type="aixm:CodeProcedureCodingStandardType" nillable="true" minOccurs="0" />
        <element name="flightChecked" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="name" type="aixm:TextNameType" nillable="true" minOccurs="0" />
        <element name="RNAV" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="availability" type="aixm:ProcedureAvailabilityPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="airportHeliport" type="aixm:AirportHeliportPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="aircraftCharacteristic" type="aixm:AircraftCharacteristicPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="flightTransition" type="aixm:ProcedureTransitionPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <choice>
            <element name="guidanceFacility_specialNavigationSystem" type="aixm:SpecialNavigationSystemPropertyType" nillable="true" minOccurs="0" />
            <element name="guidanceFacility_radar" type="aixm:RadarSystemPropertyType" nillable="true" minOccurs="0" />
            <element name="guidanceFacility_navaid" type="aixm:NavaidPropertyType" nillable="true" minOccurs="0" />
        </choice>
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="safeAltitude" type="aixm:SafeAltitudeAreaPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
communicationFailureInstruction aixm:communicationFailureInstruction 0 (1)
instruction aixm:instruction 0 (1)
designCriteria aixm:designCriteria 0 (1)
codingStandard aixm:codingStandard 0 (1)
flightChecked aixm:flightChecked 0 (1)
name aixm:name 0 (1)
RNAV aixm:RNAV 0 (1)
availability aixm:availability 0 unbounded
airportHeliport aixm:airportHeliport 0 unbounded
aircraftCharacteristic aixm:aircraftCharacteristic 0 unbounded
flightTransition aixm:flightTransition 0 unbounded
guidanceFacility_specialNavigationSystem aixm:guidanceFacility_specialNavigationSystem 0 (1)
guidanceFacility_radar aixm:guidanceFacility_radar 0 (1)
guidanceFacility_navaid aixm:guidanceFacility_navaid 0 (1)
annotation aixm:annotation 0 unbounded
safeAltitude aixm:safeAltitude 0 1
