Documentation for AIXM 5.1.1
Definition Type: Group
Name: PropertiesWithSchedulePropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

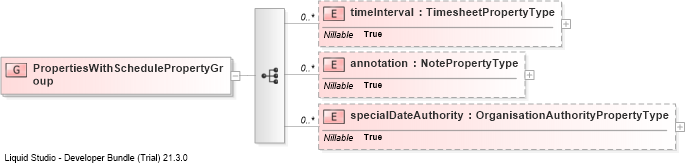

Collapse XSD Schema Diagram:
Drilldown into specialDateAuthorityDrilldown into annotationDrilldown into timeIntervalXSD Diagram of PropertiesWithSchedulePropertyGroup
Collapse XSD Schema Code:
<group name="PropertiesWithSchedulePropertyGroup">
    <sequence>
        <element name="timeInterval" type="aixm:TimesheetPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="specialDateAuthority" type="aixm:OrganisationAuthorityPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
timeInterval aixm:timeInterval 0 unbounded
annotation aixm:annotation 0 unbounded
specialDateAuthority aixm:specialDateAuthority 0 unbounded
