Documentation for AIXM 5.1.1
Definition Type: Group
Name: RadarEquipmentPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

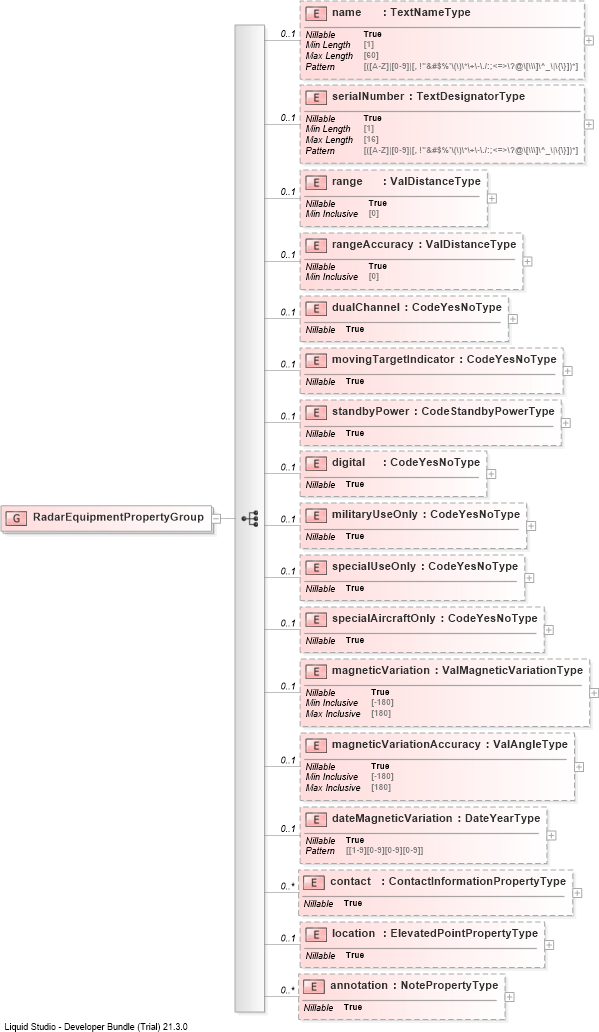

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into locationDrilldown into contactDrilldown into dateMagneticVariationDrilldown into magneticVariationAccuracyDrilldown into magneticVariationDrilldown into specialAircraftOnlyDrilldown into specialUseOnlyDrilldown into militaryUseOnlyDrilldown into digitalDrilldown into standbyPowerDrilldown into movingTargetIndicatorDrilldown into dualChannelDrilldown into rangeAccuracyDrilldown into rangeDrilldown into serialNumberDrilldown into nameXSD Diagram of RadarEquipmentPropertyGroup
Collapse XSD Schema Code:
<group name="RadarEquipmentPropertyGroup">
    <sequence>
        <element name="name" type="aixm:TextNameType" nillable="true" minOccurs="0" />
        <element name="serialNumber" type="aixm:TextDesignatorType" nillable="true" minOccurs="0" />
        <element name="range" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="rangeAccuracy" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="dualChannel" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="movingTargetIndicator" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="standbyPower" type="aixm:CodeStandbyPowerType" nillable="true" minOccurs="0" />
        <element name="digital" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="militaryUseOnly" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="specialUseOnly" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="specialAircraftOnly" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="magneticVariation" type="aixm:ValMagneticVariationType" nillable="true" minOccurs="0" />
        <element name="magneticVariationAccuracy" type="aixm:ValAngleType" nillable="true" minOccurs="0" />
        <element name="dateMagneticVariation" type="aixm:DateYearType" nillable="true" minOccurs="0" />
        <element name="contact" type="aixm:ContactInformationPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="location" type="aixm:ElevatedPointPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name aixm:name 0 (1)
serialNumber aixm:serialNumber 0 (1)
range aixm:range 0 (1)
rangeAccuracy aixm:rangeAccuracy 0 (1)
dualChannel aixm:dualChannel 0 (1)
movingTargetIndicator aixm:movingTargetIndicator 0 (1)
standbyPower aixm:standbyPower 0 (1)
digital aixm:digital 0 (1)
militaryUseOnly aixm:militaryUseOnly 0 (1)
specialUseOnly aixm:specialUseOnly 0 (1)
specialAircraftOnly aixm:specialAircraftOnly 0 (1)
magneticVariation aixm:magneticVariation 0 (1)
magneticVariationAccuracy aixm:magneticVariationAccuracy 0 (1)
dateMagneticVariation aixm:dateMagneticVariation 0 (1)
contact aixm:contact 0 unbounded
location aixm:location 0 1
annotation aixm:annotation 0 unbounded
