Documentation for AIXM 5.1.1
Definition Type: Group
Name: RadarSystemPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

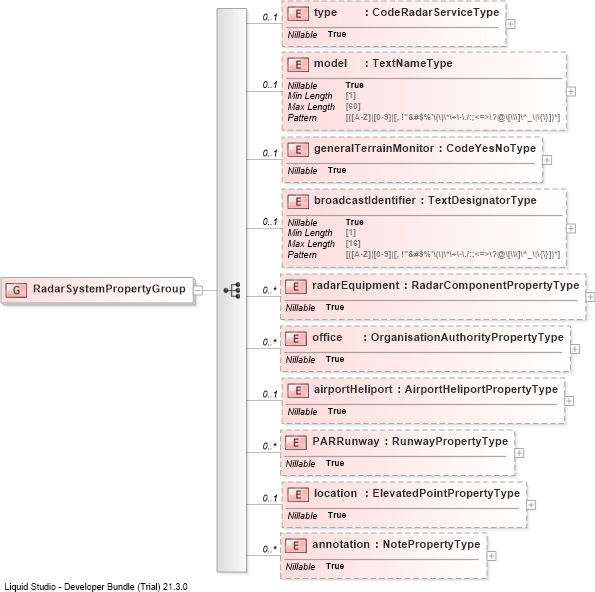

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into locationDrilldown into PARRunwayDrilldown into airportHeliportDrilldown into officeDrilldown into radarEquipmentDrilldown into broadcastIdentifierDrilldown into generalTerrainMonitorDrilldown into modelDrilldown into typeXSD Diagram of RadarSystemPropertyGroup
Collapse XSD Schema Code:
<group name="RadarSystemPropertyGroup">
    <sequence>
        <element name="type" type="aixm:CodeRadarServiceType" nillable="true" minOccurs="0" />
        <element name="model" type="aixm:TextNameType" nillable="true" minOccurs="0" />
        <element name="generalTerrainMonitor" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="broadcastIdentifier" type="aixm:TextDesignatorType" nillable="true" minOccurs="0" />
        <element name="radarEquipment" type="aixm:RadarComponentPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="office" type="aixm:OrganisationAuthorityPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="airportHeliport" type="aixm:AirportHeliportPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="PARRunway" type="aixm:RunwayPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="location" type="aixm:ElevatedPointPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
type aixm:type 0 (1)
model aixm:model 0 (1)
generalTerrainMonitor aixm:generalTerrainMonitor 0 (1)
broadcastIdentifier aixm:broadcastIdentifier 0 (1)
radarEquipment aixm:radarEquipment 0 unbounded
office aixm:office 0 unbounded
airportHeliport aixm:airportHeliport 0 1
PARRunway aixm:PARRunway 0 unbounded
location aixm:location 0 1
annotation aixm:annotation 0 unbounded
