Documentation for AIXM 5.1.1
Definition Type: Group
Name: RadioCommunicationChannelPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

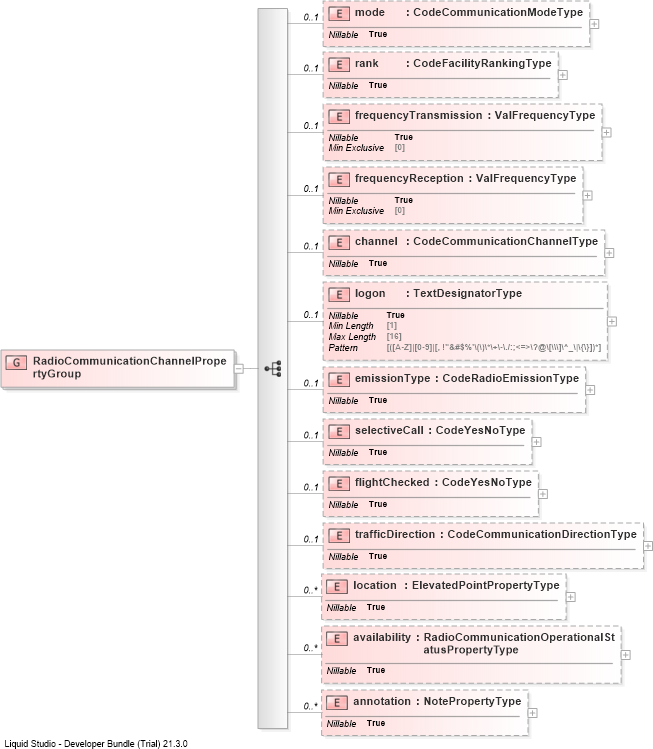

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into availabilityDrilldown into locationDrilldown into trafficDirectionDrilldown into flightCheckedDrilldown into selectiveCallDrilldown into emissionTypeDrilldown into logonDrilldown into channelDrilldown into frequencyReceptionDrilldown into frequencyTransmissionDrilldown into rankDrilldown into modeXSD Diagram of RadioCommunicationChannelPropertyGroup
Collapse XSD Schema Code:
<group name="RadioCommunicationChannelPropertyGroup">
    <sequence>
        <element name="mode" type="aixm:CodeCommunicationModeType" nillable="true" minOccurs="0" />
        <element name="rank" type="aixm:CodeFacilityRankingType" nillable="true" minOccurs="0" />
        <element name="frequencyTransmission" type="aixm:ValFrequencyType" nillable="true" minOccurs="0" />
        <element name="frequencyReception" type="aixm:ValFrequencyType" nillable="true" minOccurs="0" />
        <element name="channel" type="aixm:CodeCommunicationChannelType" nillable="true" minOccurs="0" />
        <element name="logon" type="aixm:TextDesignatorType" nillable="true" minOccurs="0" />
        <element name="emissionType" type="aixm:CodeRadioEmissionType" nillable="true" minOccurs="0" />
        <element name="selectiveCall" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="flightChecked" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="trafficDirection" type="aixm:CodeCommunicationDirectionType" nillable="true" minOccurs="0" />
        <element name="location" type="aixm:ElevatedPointPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="availability" type="aixm:RadioCommunicationOperationalStatusPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
mode aixm:mode 0 (1)
rank aixm:rank 0 (1)
frequencyTransmission aixm:frequencyTransmission 0 (1)
frequencyReception aixm:frequencyReception 0 (1)
channel aixm:channel 0 (1)
logon aixm:logon 0 (1)
emissionType aixm:emissionType 0 (1)
selectiveCall aixm:selectiveCall 0 (1)
flightChecked aixm:flightChecked 0 (1)
trafficDirection aixm:trafficDirection 0 (1)
location aixm:location 0 unbounded
availability aixm:availability 0 unbounded
annotation aixm:annotation 0 unbounded
