Documentation for AIXM 5.1.1
Definition Type: Group
Name: RoadPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

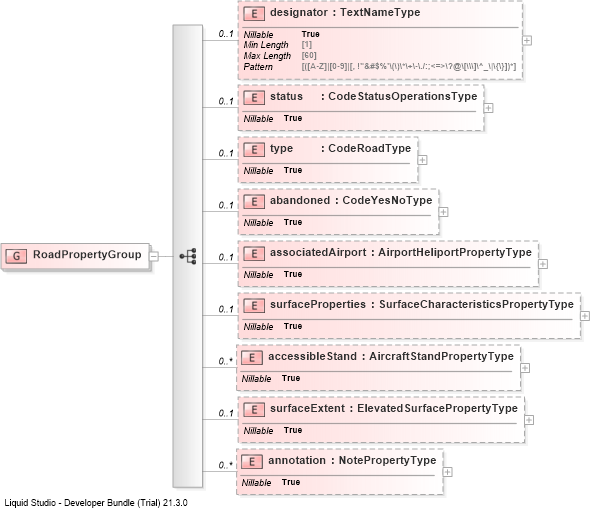

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into surfaceExtentDrilldown into accessibleStandDrilldown into surfacePropertiesDrilldown into associatedAirportDrilldown into abandonedDrilldown into typeDrilldown into statusDrilldown into designatorXSD Diagram of RoadPropertyGroup
Collapse XSD Schema Code:
<group name="RoadPropertyGroup">
    <sequence>
        <element name="designator" type="aixm:TextNameType" nillable="true" minOccurs="0" />
        <element name="status" type="aixm:CodeStatusOperationsType" nillable="true" minOccurs="0" />
        <element name="type" type="aixm:CodeRoadType" nillable="true" minOccurs="0" />
        <element name="abandoned" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="associatedAirport" type="aixm:AirportHeliportPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="surfaceProperties" type="aixm:SurfaceCharacteristicsPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="accessibleStand" type="aixm:AircraftStandPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="surfaceExtent" type="aixm:ElevatedSurfacePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
designator aixm:designator 0 (1)
status aixm:status 0 (1)
type aixm:type 0 (1)
abandoned aixm:abandoned 0 (1)
associatedAirport aixm:associatedAirport 0 1
surfaceProperties aixm:surfaceProperties 0 1
accessibleStand aixm:accessibleStand 0 unbounded
surfaceExtent aixm:surfaceExtent 0 1
annotation aixm:annotation 0 unbounded
