Documentation for AIXM 5.1.1
Definition Type: Group
Name: RouteAvailabilityPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

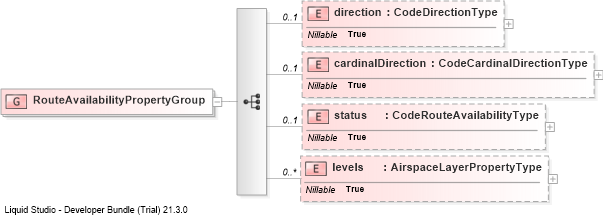

Collapse XSD Schema Diagram:
Drilldown into levelsDrilldown into statusDrilldown into cardinalDirectionDrilldown into directionXSD Diagram of RouteAvailabilityPropertyGroup
Collapse XSD Schema Code:
<group name="RouteAvailabilityPropertyGroup">
    <sequence>
        <element name="direction" type="aixm:CodeDirectionType" nillable="true" minOccurs="0" />
        <element name="cardinalDirection" type="aixm:CodeCardinalDirectionType" nillable="true" minOccurs="0" />
        <element name="status" type="aixm:CodeRouteAvailabilityType" nillable="true" minOccurs="0" />
        <element name="levels" type="aixm:AirspaceLayerPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
direction aixm:direction 0 (1)
cardinalDirection aixm:cardinalDirection 0 (1)
status aixm:status 0 (1)
levels aixm:levels 0 unbounded
