Documentation for AIXM 5.1.1
Definition Type: Group
Name: RouteDMEPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

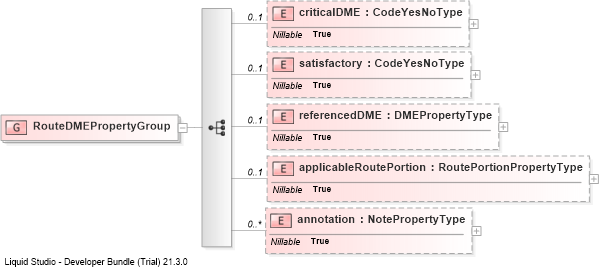

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into applicableRoutePortionDrilldown into referencedDMEDrilldown into satisfactoryDrilldown into criticalDMEXSD Diagram of RouteDMEPropertyGroup
Collapse XSD Schema Code:
<group name="RouteDMEPropertyGroup">
    <sequence>
        <element name="criticalDME" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="satisfactory" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="referencedDME" type="aixm:DMEPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="applicableRoutePortion" type="aixm:RoutePortionPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
criticalDME aixm:criticalDME 0 (1)
satisfactory aixm:satisfactory 0 (1)
referencedDME aixm:referencedDME 0 1
applicableRoutePortion aixm:applicableRoutePortion 0 1
annotation aixm:annotation 0 unbounded
