Documentation for AIXM 5.1.1
Definition Type: Group
Name: RoutePropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

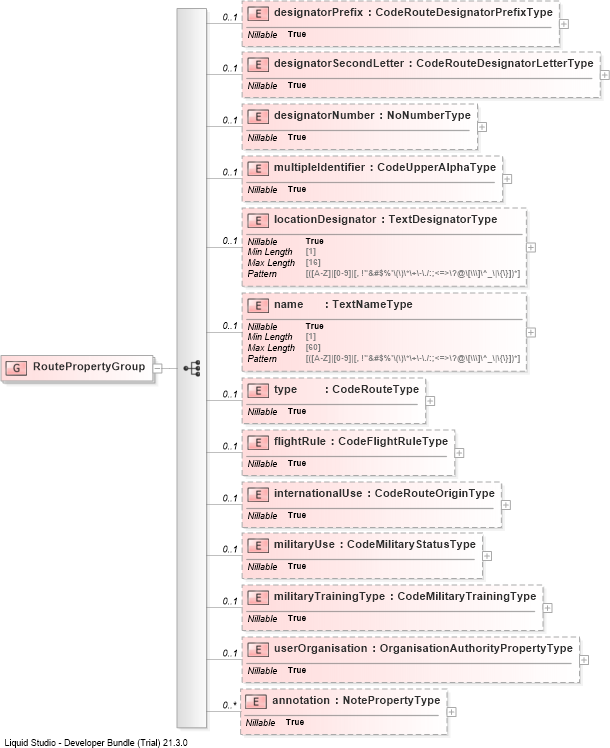

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into userOrganisationDrilldown into militaryTrainingTypeDrilldown into militaryUseDrilldown into internationalUseDrilldown into flightRuleDrilldown into typeDrilldown into nameDrilldown into locationDesignatorDrilldown into multipleIdentifierDrilldown into designatorNumberDrilldown into designatorSecondLetterDrilldown into designatorPrefixXSD Diagram of RoutePropertyGroup
Collapse XSD Schema Code:
<group name="RoutePropertyGroup">
    <sequence>
        <element name="designatorPrefix" type="aixm:CodeRouteDesignatorPrefixType" nillable="true" minOccurs="0" />
        <element name="designatorSecondLetter" type="aixm:CodeRouteDesignatorLetterType" nillable="true" minOccurs="0" />
        <element name="designatorNumber" type="aixm:NoNumberType" nillable="true" minOccurs="0" />
        <element name="multipleIdentifier" type="aixm:CodeUpperAlphaType" nillable="true" minOccurs="0" />
        <element name="locationDesignator" type="aixm:TextDesignatorType" nillable="true" minOccurs="0" />
        <element name="name" type="aixm:TextNameType" nillable="true" minOccurs="0" />
        <element name="type" type="aixm:CodeRouteType" nillable="true" minOccurs="0" />
        <element name="flightRule" type="aixm:CodeFlightRuleType" nillable="true" minOccurs="0" />
        <element name="internationalUse" type="aixm:CodeRouteOriginType" nillable="true" minOccurs="0" />
        <element name="militaryUse" type="aixm:CodeMilitaryStatusType" nillable="true" minOccurs="0" />
        <element name="militaryTrainingType" type="aixm:CodeMilitaryTrainingType" nillable="true" minOccurs="0" />
        <element name="userOrganisation" type="aixm:OrganisationAuthorityPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
designatorPrefix aixm:designatorPrefix 0 (1)
designatorSecondLetter aixm:designatorSecondLetter 0 (1)
designatorNumber aixm:designatorNumber 0 (1)
multipleIdentifier aixm:multipleIdentifier 0 (1)
locationDesignator aixm:locationDesignator 0 (1)
name aixm:name 0 (1)
type aixm:type 0 (1)
flightRule aixm:flightRule 0 (1)
internationalUse aixm:internationalUse 0 (1)
militaryUse aixm:militaryUse 0 (1)
militaryTrainingType aixm:militaryTrainingType 0 (1)
userOrganisation aixm:userOrganisation 0 1
annotation aixm:annotation 0 unbounded
