Definition Type: Group
Name: RouteSegmentPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd
Collapse XSD Schema Diagram:

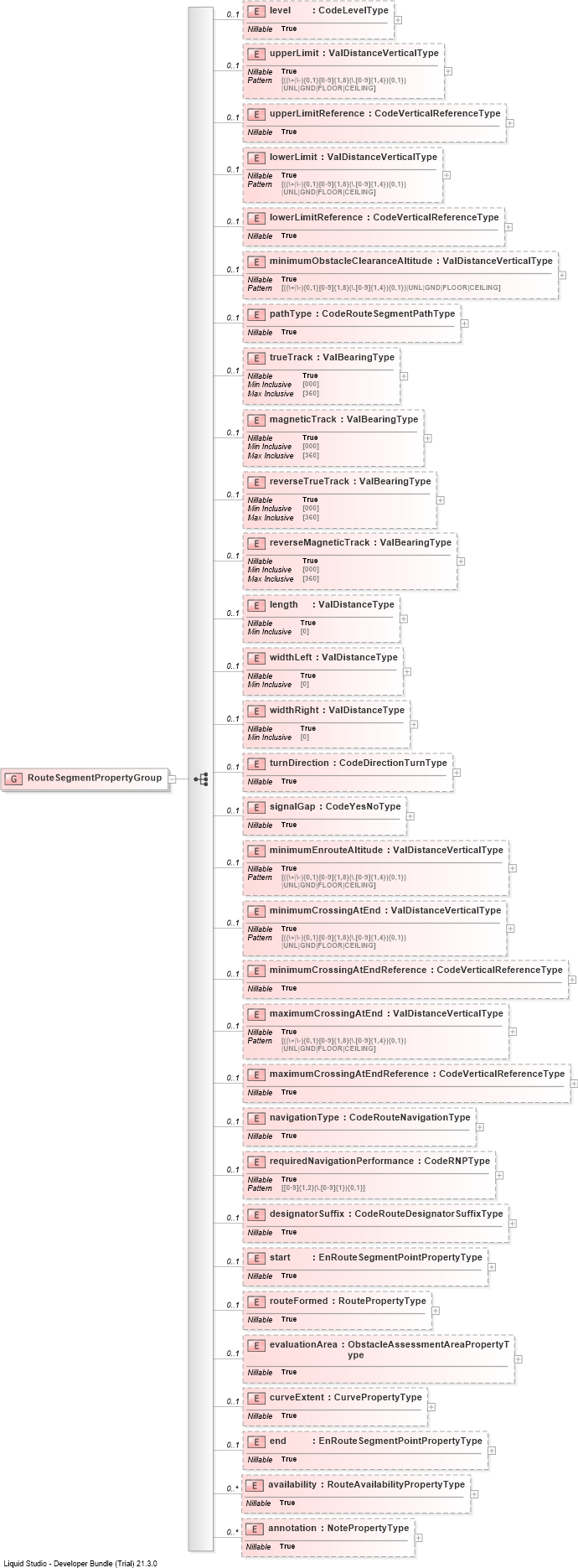

Drilldown into annotationDrilldown into availabilityDrilldown into endDrilldown into curveExtentDrilldown into evaluationAreaDrilldown into routeFormedDrilldown into startDrilldown into designatorSuffixDrilldown into requiredNavigationPerformanceDrilldown into navigationTypeDrilldown into maximumCrossingAtEndReferenceDrilldown into maximumCrossingAtEndDrilldown into minimumCrossingAtEndReferenceDrilldown into minimumCrossingAtEndDrilldown into minimumEnrouteAltitudeDrilldown into signalGapDrilldown into turnDirectionDrilldown into widthRightDrilldown into widthLeftDrilldown into lengthDrilldown into reverseMagneticTrackDrilldown into reverseTrueTrackDrilldown into magneticTrackDrilldown into trueTrackDrilldown into pathTypeDrilldown into minimumObstacleClearanceAltitudeDrilldown into lowerLimitReferenceDrilldown into lowerLimitDrilldown into upperLimitReferenceDrilldown into upperLimitDrilldown into levelXSD Diagram of RouteSegmentPropertyGroup
Collapse XSD Schema Code:
<group name="RouteSegmentPropertyGroup">
    <sequence>
        <element name="level" type="aixm:CodeLevelType" nillable="true" minOccurs="0" />
        <element name="upperLimit" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="upperLimitReference" type="aixm:CodeVerticalReferenceType" nillable="true" minOccurs="0" />
        <element name="lowerLimit" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="lowerLimitReference" type="aixm:CodeVerticalReferenceType" nillable="true" minOccurs="0" />
        <element name="minimumObstacleClearanceAltitude" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="pathType" type="aixm:CodeRouteSegmentPathType" nillable="true" minOccurs="0" />
        <element name="trueTrack" type="aixm:ValBearingType" nillable="true" minOccurs="0" />
        <element name="magneticTrack" type="aixm:ValBearingType" nillable="true" minOccurs="0" />
        <element name="reverseTrueTrack" type="aixm:ValBearingType" nillable="true" minOccurs="0" />
        <element name="reverseMagneticTrack" type="aixm:ValBearingType" nillable="true" minOccurs="0" />
        <element name="length" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="widthLeft" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="widthRight" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="turnDirection" type="aixm:CodeDirectionTurnType" nillable="true" minOccurs="0" />
        <element name="signalGap" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="minimumEnrouteAltitude" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="minimumCrossingAtEnd" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="minimumCrossingAtEndReference" type="aixm:CodeVerticalReferenceType" nillable="true" minOccurs="0" />
        <element name="maximumCrossingAtEnd" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="maximumCrossingAtEndReference" type="aixm:CodeVerticalReferenceType" nillable="true" minOccurs="0" />
        <element name="navigationType" type="aixm:CodeRouteNavigationType" nillable="true" minOccurs="0" />
        <element name="requiredNavigationPerformance" type="aixm:CodeRNPType" nillable="true" minOccurs="0" />
        <element name="designatorSuffix" type="aixm:CodeRouteDesignatorSuffixType" nillable="true" minOccurs="0" />
        <element name="start" type="aixm:EnRouteSegmentPointPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="routeFormed" type="aixm:RoutePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="evaluationArea" type="aixm:ObstacleAssessmentAreaPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="curveExtent" type="aixm:CurvePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="end" type="aixm:EnRouteSegmentPointPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="availability" type="aixm:RouteAvailabilityPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
level aixm:level 0 (1)
upperLimit aixm:upperLimit 0 (1)
upperLimitReference aixm:upperLimitReference 0 (1)
lowerLimit aixm:lowerLimit 0 (1)
lowerLimitReference aixm:lowerLimitReference 0 (1)
minimumObstacleClearanceAltitude aixm:minimumObstacleClearanceAltitude 0 (1)
pathType aixm:pathType 0 (1)
trueTrack aixm:trueTrack 0 (1)
magneticTrack aixm:magneticTrack 0 (1)
reverseTrueTrack aixm:reverseTrueTrack 0 (1)
reverseMagneticTrack aixm:reverseMagneticTrack 0 (1)
length aixm:length 0 (1)
widthLeft aixm:widthLeft 0 (1)
widthRight aixm:widthRight 0 (1)
turnDirection aixm:turnDirection 0 (1)
signalGap aixm:signalGap 0 (1)
minimumEnrouteAltitude aixm:minimumEnrouteAltitude 0 (1)
minimumCrossingAtEnd aixm:minimumCrossingAtEnd 0 (1)
minimumCrossingAtEndReference aixm:minimumCrossingAtEndReference 0 (1)
maximumCrossingAtEnd aixm:maximumCrossingAtEnd 0 (1)
maximumCrossingAtEndReference aixm:maximumCrossingAtEndReference 0 (1)
navigationType aixm:navigationType 0 (1)
requiredNavigationPerformance aixm:requiredNavigationPerformance 0 (1)
designatorSuffix aixm:designatorSuffix 0 (1)
start aixm:start 0 1
routeFormed aixm:routeFormed 0 1
evaluationArea aixm:evaluationArea 0 1
curveExtent aixm:curveExtent 0 1
end aixm:end 0 1
availability aixm:availability 0 unbounded
annotation aixm:annotation 0 unbounded
