Documentation for AIXM 5.1.1
Definition Type: Group
Name: RunwayCentrelinePointPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

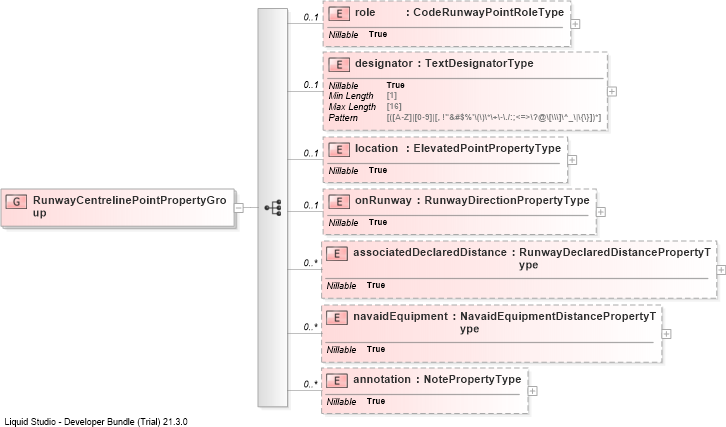

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into navaidEquipmentDrilldown into associatedDeclaredDistanceDrilldown into onRunwayDrilldown into locationDrilldown into designatorDrilldown into roleXSD Diagram of RunwayCentrelinePointPropertyGroup
Collapse XSD Schema Code:
<group name="RunwayCentrelinePointPropertyGroup">
    <sequence>
        <element name="role" type="aixm:CodeRunwayPointRoleType" nillable="true" minOccurs="0" />
        <element name="designator" type="aixm:TextDesignatorType" nillable="true" minOccurs="0" />
        <element name="location" type="aixm:ElevatedPointPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="onRunway" type="aixm:RunwayDirectionPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="associatedDeclaredDistance" type="aixm:RunwayDeclaredDistancePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="navaidEquipment" type="aixm:NavaidEquipmentDistancePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
role aixm:role 0 (1)
designator aixm:designator 0 (1)
location aixm:location 0 1
onRunway aixm:onRunway 0 1
associatedDeclaredDistance aixm:associatedDeclaredDistance 0 unbounded
navaidEquipment aixm:navaidEquipment 0 unbounded
annotation aixm:annotation 0 unbounded
