Docs for schema item RunwayContaminationPropertyGroup in AIXM 5.1.1

Documentation for AIXM 5.1.1

Definition Type:	Group
Name:	RunwayContaminationPropertyGroup
Namespace:	http://www.aixm.aero/schema/5.1.1
Containing Schema:	AIXM_Features.xsd

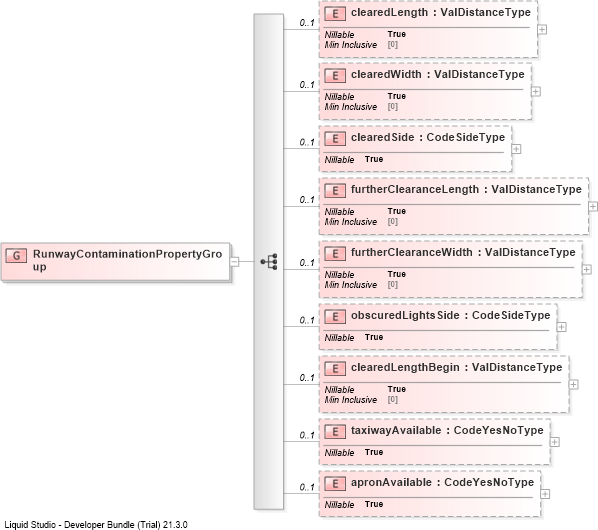

XSD Schema Diagram:

XSD Diagram of RunwayContaminationPropertyGroup

XSD Schema Code:

<group name="RunwayContaminationPropertyGroup">
    <sequence>
        <element name="clearedLength" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="clearedWidth" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="clearedSide" type="aixm:CodeSideType" nillable="true" minOccurs="0" />
        <element name="furtherClearanceLength" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="furtherClearanceWidth" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="obscuredLightsSide" type="aixm:CodeSideType" nillable="true" minOccurs="0" />
        <element name="clearedLengthBegin" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="taxiwayAvailable" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="apronAvailable" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
    </sequence>
</group>

Child Elements:

Name	Type	Min Occurs	Max Occurs
clearedLength	aixm:clearedLength	0	(1)
clearedWidth	aixm:clearedWidth	0	(1)
clearedSide	aixm:clearedSide	0	(1)
furtherClearanceLength	aixm:furtherClearanceLength	0	(1)
furtherClearanceWidth	aixm:furtherClearanceWidth	0	(1)
obscuredLightsSide	aixm:obscuredLightsSide	0	(1)
clearedLengthBegin	aixm:clearedLengthBegin	0	(1)
taxiwayAvailable	aixm:taxiwayAvailable	0	(1)
apronAvailable	aixm:apronAvailable	0	(1)
