Documentation for AIXM 5.1.1
Definition Type: Group
Name: RunwayDirectionPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

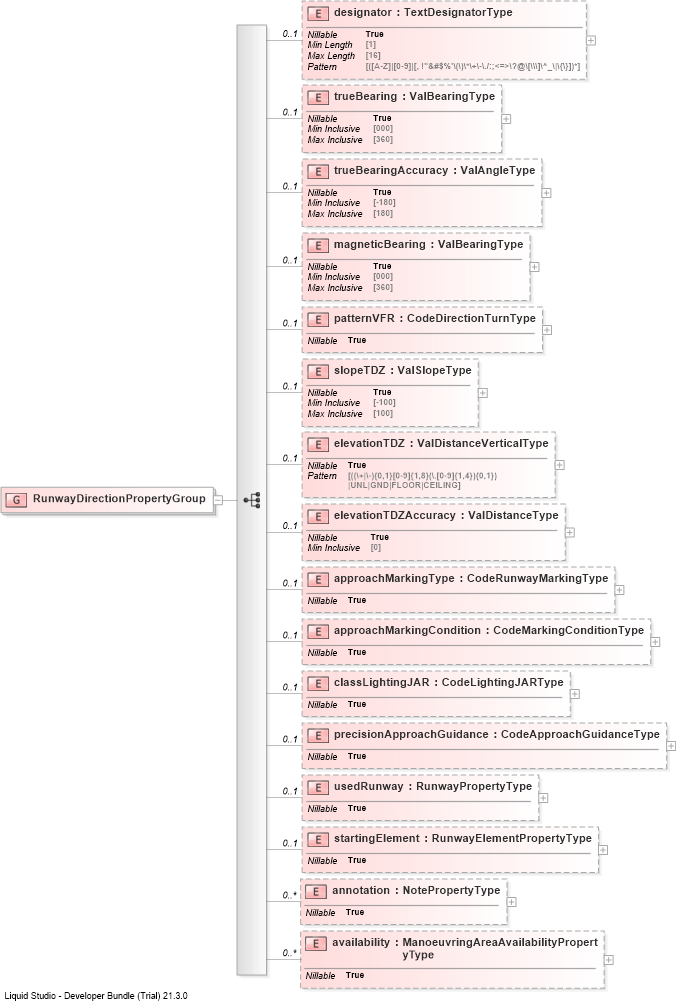

Collapse XSD Schema Diagram:
Drilldown into availabilityDrilldown into annotationDrilldown into startingElementDrilldown into usedRunwayDrilldown into precisionApproachGuidanceDrilldown into classLightingJARDrilldown into approachMarkingConditionDrilldown into approachMarkingTypeDrilldown into elevationTDZAccuracyDrilldown into elevationTDZDrilldown into slopeTDZDrilldown into patternVFRDrilldown into magneticBearingDrilldown into trueBearingAccuracyDrilldown into trueBearingDrilldown into designatorXSD Diagram of RunwayDirectionPropertyGroup
Collapse XSD Schema Code:
<group name="RunwayDirectionPropertyGroup">
    <sequence>
        <element name="designator" type="aixm:TextDesignatorType" nillable="true" minOccurs="0" />
        <element name="trueBearing" type="aixm:ValBearingType" nillable="true" minOccurs="0" />
        <element name="trueBearingAccuracy" type="aixm:ValAngleType" nillable="true" minOccurs="0" />
        <element name="magneticBearing" type="aixm:ValBearingType" nillable="true" minOccurs="0" />
        <element name="patternVFR" type="aixm:CodeDirectionTurnType" nillable="true" minOccurs="0" />
        <element name="slopeTDZ" type="aixm:ValSlopeType" nillable="true" minOccurs="0" />
        <element name="elevationTDZ" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="elevationTDZAccuracy" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="approachMarkingType" type="aixm:CodeRunwayMarkingType" nillable="true" minOccurs="0" />
        <element name="approachMarkingCondition" type="aixm:CodeMarkingConditionType" nillable="true" minOccurs="0" />
        <element name="classLightingJAR" type="aixm:CodeLightingJARType" nillable="true" minOccurs="0" />
        <element name="precisionApproachGuidance" type="aixm:CodeApproachGuidanceType" nillable="true" minOccurs="0" />
        <element name="usedRunway" type="aixm:RunwayPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="startingElement" type="aixm:RunwayElementPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="availability" type="aixm:ManoeuvringAreaAvailabilityPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
designator aixm:designator 0 (1)
trueBearing aixm:trueBearing 0 (1)
trueBearingAccuracy aixm:trueBearingAccuracy 0 (1)
magneticBearing aixm:magneticBearing 0 (1)
patternVFR aixm:patternVFR 0 (1)
slopeTDZ aixm:slopeTDZ 0 (1)
elevationTDZ aixm:elevationTDZ 0 (1)
elevationTDZAccuracy aixm:elevationTDZAccuracy 0 (1)
approachMarkingType aixm:approachMarkingType 0 (1)
approachMarkingCondition aixm:approachMarkingCondition 0 (1)
classLightingJAR aixm:classLightingJAR 0 (1)
precisionApproachGuidance aixm:precisionApproachGuidance 0 (1)
usedRunway aixm:usedRunway 0 1
startingElement aixm:startingElement 0 1
annotation aixm:annotation 0 unbounded
availability aixm:availability 0 unbounded
