Documentation for AIXM 5.1.1
Definition Type: Group
Name: RunwayPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

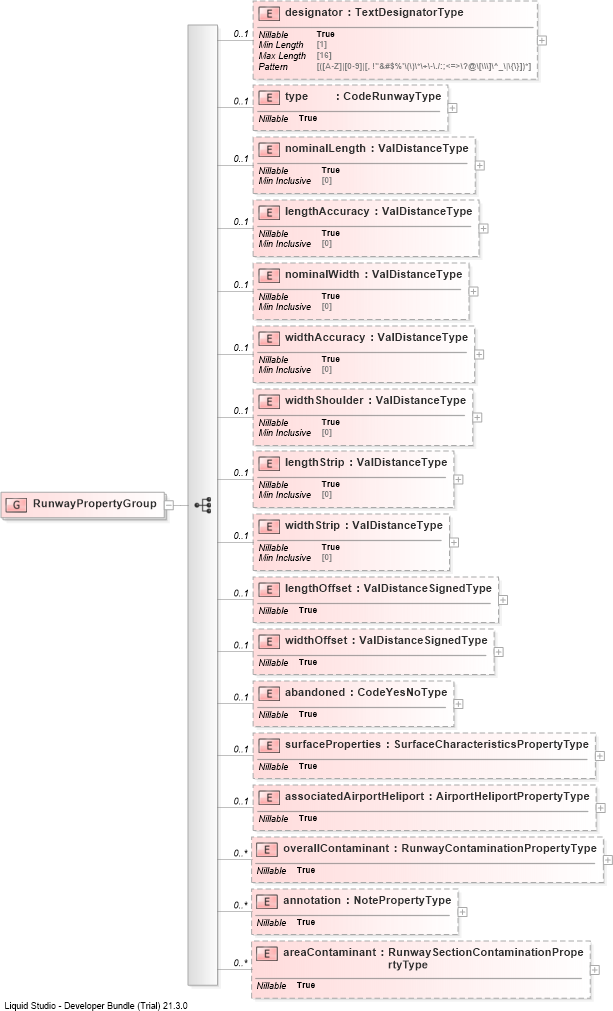

Collapse XSD Schema Diagram:
Drilldown into areaContaminantDrilldown into annotationDrilldown into overallContaminantDrilldown into associatedAirportHeliportDrilldown into surfacePropertiesDrilldown into abandonedDrilldown into widthOffsetDrilldown into lengthOffsetDrilldown into widthStripDrilldown into lengthStripDrilldown into widthShoulderDrilldown into widthAccuracyDrilldown into nominalWidthDrilldown into lengthAccuracyDrilldown into nominalLengthDrilldown into typeDrilldown into designatorXSD Diagram of RunwayPropertyGroup
Collapse XSD Schema Code:
<group name="RunwayPropertyGroup">
    <sequence>
        <element name="designator" type="aixm:TextDesignatorType" nillable="true" minOccurs="0" />
        <element name="type" type="aixm:CodeRunwayType" nillable="true" minOccurs="0" />
        <element name="nominalLength" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="lengthAccuracy" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="nominalWidth" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="widthAccuracy" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="widthShoulder" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="lengthStrip" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="widthStrip" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="lengthOffset" type="aixm:ValDistanceSignedType" nillable="true" minOccurs="0" />
        <element name="widthOffset" type="aixm:ValDistanceSignedType" nillable="true" minOccurs="0" />
        <element name="abandoned" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="surfaceProperties" type="aixm:SurfaceCharacteristicsPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="associatedAirportHeliport" type="aixm:AirportHeliportPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="overallContaminant" type="aixm:RunwayContaminationPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="areaContaminant" type="aixm:RunwaySectionContaminationPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
designator aixm:designator 0 (1)
type aixm:type 0 (1)
nominalLength aixm:nominalLength 0 (1)
lengthAccuracy aixm:lengthAccuracy 0 (1)
nominalWidth aixm:nominalWidth 0 (1)
widthAccuracy aixm:widthAccuracy 0 (1)
widthShoulder aixm:widthShoulder 0 (1)
lengthStrip aixm:lengthStrip 0 (1)
widthStrip aixm:widthStrip 0 (1)
lengthOffset aixm:lengthOffset 0 (1)
widthOffset aixm:widthOffset 0 (1)
abandoned aixm:abandoned 0 (1)
surfaceProperties aixm:surfaceProperties 0 1
associatedAirportHeliport aixm:associatedAirportHeliport 0 1
overallContaminant aixm:overallContaminant 0 unbounded
annotation aixm:annotation 0 unbounded
areaContaminant aixm:areaContaminant 0 unbounded
