Documentation for AIXM 5.1.1
Definition Type: Group
Name: RunwayVisualRangePropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

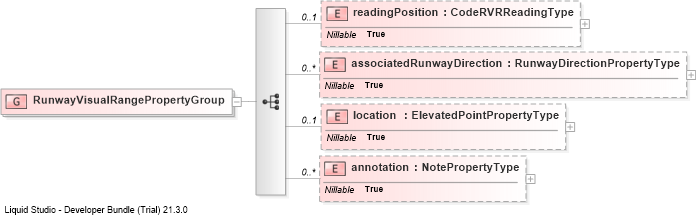

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into locationDrilldown into associatedRunwayDirectionDrilldown into readingPositionXSD Diagram of RunwayVisualRangePropertyGroup
Collapse XSD Schema Code:
<group name="RunwayVisualRangePropertyGroup">
    <sequence>
        <element name="readingPosition" type="aixm:CodeRVRReadingType" nillable="true" minOccurs="0" />
        <element name="associatedRunwayDirection" type="aixm:RunwayDirectionPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="location" type="aixm:ElevatedPointPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
readingPosition aixm:readingPosition 0 (1)
associatedRunwayDirection aixm:associatedRunwayDirection 0 unbounded
location aixm:location 0 1
annotation aixm:annotation 0 unbounded
