Documentation for AIXM 5.1.1
Definition Type: Group
Name: SafeAltitudeAreaPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

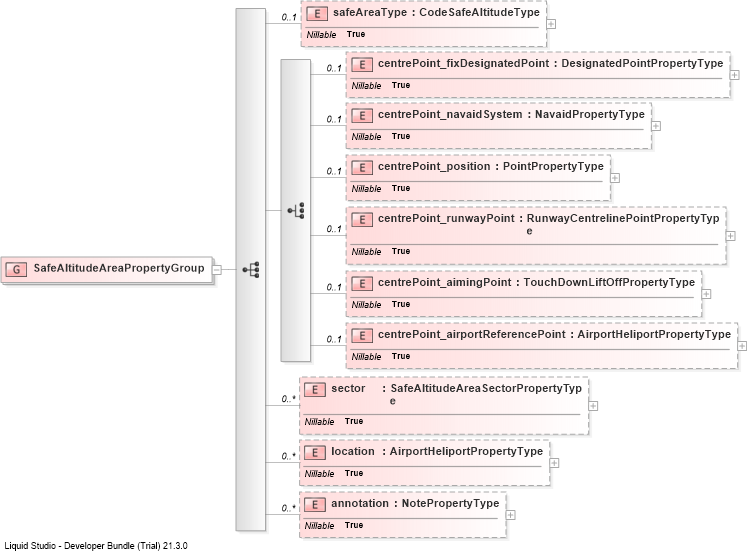

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into locationDrilldown into sectorDrilldown into centrePoint_airportReferencePointDrilldown into centrePoint_aimingPointDrilldown into centrePoint_runwayPointDrilldown into centrePoint_positionDrilldown into centrePoint_navaidSystemDrilldown into centrePoint_fixDesignatedPointDrilldown into safeAreaTypeXSD Diagram of SafeAltitudeAreaPropertyGroup
Collapse XSD Schema Code:
<group name="SafeAltitudeAreaPropertyGroup">
    <sequence>
        <element name="safeAreaType" type="aixm:CodeSafeAltitudeType" nillable="true" minOccurs="0" />
        <choice>
            <element name="centrePoint_fixDesignatedPoint" type="aixm:DesignatedPointPropertyType" nillable="true" minOccurs="0" />
            <element name="centrePoint_navaidSystem" type="aixm:NavaidPropertyType" nillable="true" minOccurs="0" />
            <element name="centrePoint_position" type="aixm:PointPropertyType" nillable="true" minOccurs="0" />
            <element name="centrePoint_runwayPoint" type="aixm:RunwayCentrelinePointPropertyType" nillable="true" minOccurs="0" />
            <element name="centrePoint_aimingPoint" type="aixm:TouchDownLiftOffPropertyType" nillable="true" minOccurs="0" />
            <element name="centrePoint_airportReferencePoint" type="aixm:AirportHeliportPropertyType" nillable="true" minOccurs="0" />
        </choice>
        <element name="sector" type="aixm:SafeAltitudeAreaSectorPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="location" type="aixm:AirportHeliportPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
safeAreaType aixm:safeAreaType 0 (1)
centrePoint_fixDesignatedPoint aixm:centrePoint_fixDesignatedPoint 0 (1)
centrePoint_navaidSystem aixm:centrePoint_navaidSystem 0 (1)
centrePoint_position aixm:centrePoint_position 0 (1)
centrePoint_runwayPoint aixm:centrePoint_runwayPoint 0 (1)
centrePoint_aimingPoint aixm:centrePoint_aimingPoint 0 (1)
centrePoint_airportReferencePoint aixm:centrePoint_airportReferencePoint 0 (1)
sector aixm:sector 0 unbounded
location aixm:location 0 unbounded
annotation aixm:annotation 0 unbounded
