Definition Type: Group
Name: SDFPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

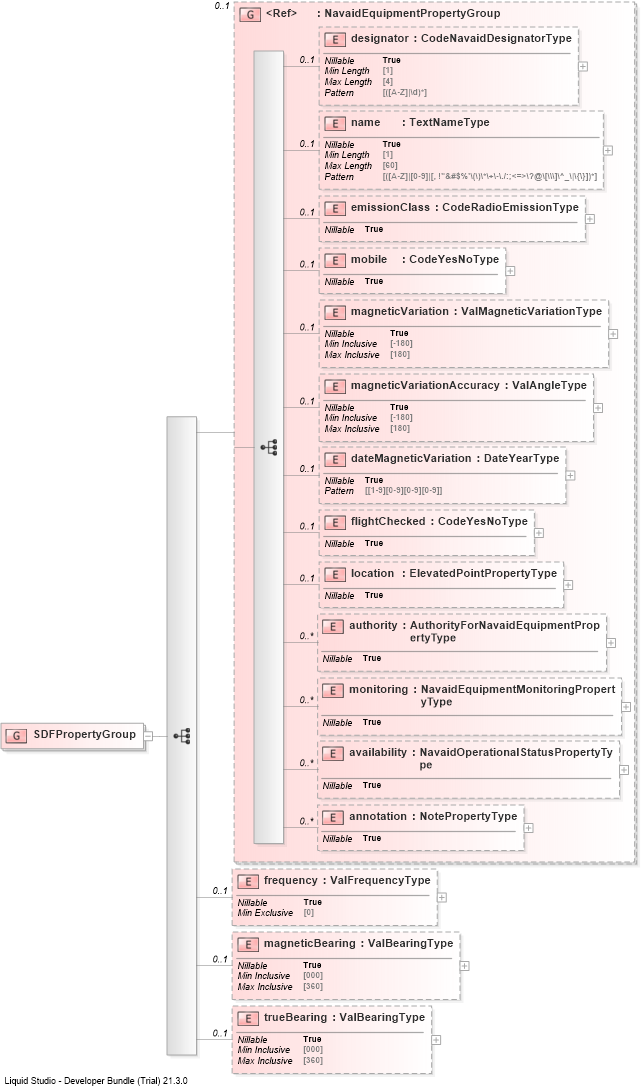

Collapse XSD Schema Diagram:
Drilldown into trueBearingDrilldown into magneticBearingDrilldown into frequencyDrilldown into annotationDrilldown into availabilityDrilldown into monitoringDrilldown into authorityDrilldown into locationDrilldown into flightCheckedDrilldown into dateMagneticVariationDrilldown into magneticVariationAccuracyDrilldown into magneticVariationDrilldown into mobileDrilldown into emissionClassDrilldown into nameDrilldown into designatorDrilldown into NavaidEquipmentPropertyGroupXSD Diagram of SDFPropertyGroup
Collapse XSD Schema Code:
<group name="SDFPropertyGroup">
    <sequence>
        <group ref="aixm:NavaidEquipmentPropertyGroup" minOccurs="0" />
        <element name="frequency" type="aixm:ValFrequencyType" nillable="true" minOccurs="0" />
        <element name="magneticBearing" type="aixm:ValBearingType" nillable="true" minOccurs="0" />
        <element name="trueBearing" type="aixm:ValBearingType" nillable="true" minOccurs="0" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
designator aixm:designator 0 (1)
name aixm:name 0 (1)
emissionClass aixm:emissionClass 0 (1)
mobile aixm:mobile 0 (1)
magneticVariation aixm:magneticVariation 0 (1)
magneticVariationAccuracy aixm:magneticVariationAccuracy 0 (1)
dateMagneticVariation aixm:dateMagneticVariation 0 (1)
flightChecked aixm:flightChecked 0 (1)
location aixm:location 0 1
authority aixm:authority 0 unbounded
monitoring aixm:monitoring 0 unbounded
availability aixm:availability 0 unbounded
annotation aixm:annotation 0 unbounded
frequency aixm:frequency 0 (1)
magneticBearing aixm:magneticBearing 0 (1)
trueBearing aixm:trueBearing 0 (1)
<xs:group> aixm:NavaidEquipmentPropertyGroup 0 (1)
