Documentation for AIXM 5.1.1
Definition Type: Group
Name: SeaplaneLandingAreaPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

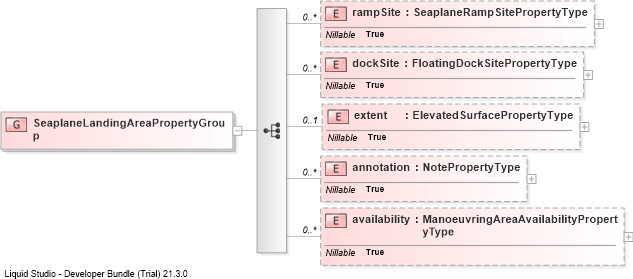

Collapse XSD Schema Diagram:
Drilldown into availabilityDrilldown into annotationDrilldown into extentDrilldown into dockSiteDrilldown into rampSiteXSD Diagram of SeaplaneLandingAreaPropertyGroup
Collapse XSD Schema Code:
<group name="SeaplaneLandingAreaPropertyGroup">
    <sequence>
        <element name="rampSite" type="aixm:SeaplaneRampSitePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="dockSite" type="aixm:FloatingDockSitePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="extent" type="aixm:ElevatedSurfacePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="availability" type="aixm:ManoeuvringAreaAvailabilityPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
rampSite aixm:rampSite 0 unbounded
dockSite aixm:dockSite 0 unbounded
extent aixm:extent 0 1
annotation aixm:annotation 0 unbounded
availability aixm:availability 0 unbounded
