Definition Type: Group
Name: SectorDesignPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

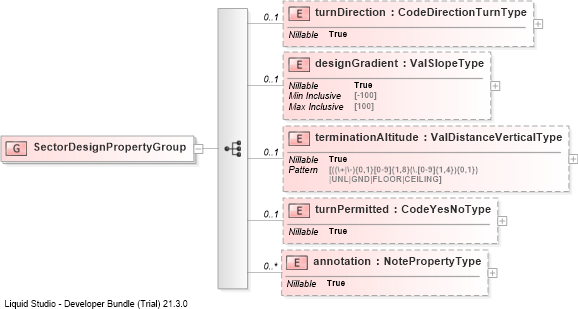

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into turnPermittedDrilldown into terminationAltitudeDrilldown into designGradientDrilldown into turnDirectionXSD Diagram of SectorDesignPropertyGroup
Collapse XSD Schema Code:
<group name="SectorDesignPropertyGroup">
    <sequence>
        <element name="turnDirection" type="aixm:CodeDirectionTurnType" nillable="true" minOccurs="0" />
        <element name="designGradient" type="aixm:ValSlopeType" nillable="true" minOccurs="0" />
        <element name="terminationAltitude" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="turnPermitted" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
turnDirection aixm:turnDirection 0 (1)
designGradient aixm:designGradient 0 (1)
terminationAltitude aixm:terminationAltitude 0 (1)
turnPermitted aixm:turnPermitted 0 (1)
annotation aixm:annotation 0 unbounded
