Documentation for AIXM 5.1.1
Definition Type: Group
Name: SegmentPointPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

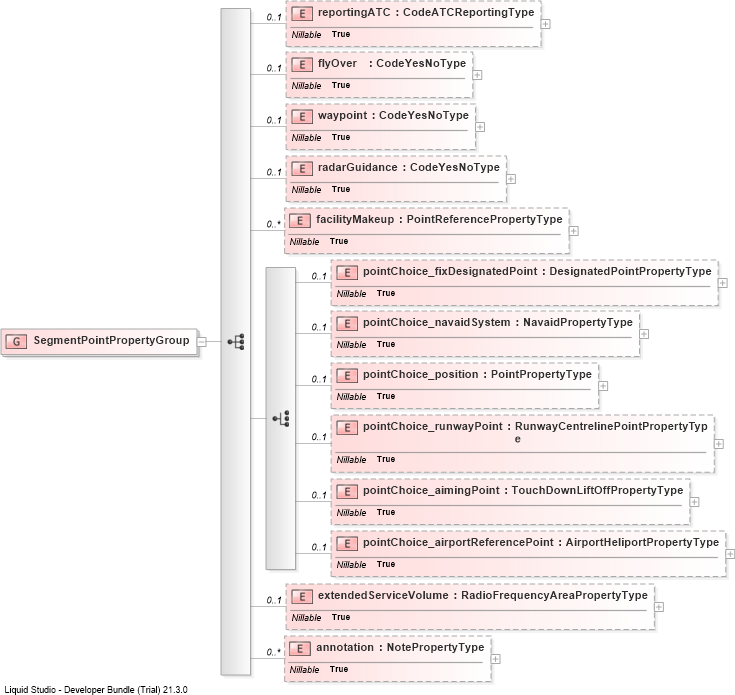

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into extendedServiceVolumeDrilldown into pointChoice_airportReferencePointDrilldown into pointChoice_aimingPointDrilldown into pointChoice_runwayPointDrilldown into pointChoice_positionDrilldown into pointChoice_navaidSystemDrilldown into pointChoice_fixDesignatedPointDrilldown into facilityMakeupDrilldown into radarGuidanceDrilldown into waypointDrilldown into flyOverDrilldown into reportingATCXSD Diagram of SegmentPointPropertyGroup
Collapse XSD Schema Code:
<group name="SegmentPointPropertyGroup">
    <sequence>
        <element name="reportingATC" type="aixm:CodeATCReportingType" nillable="true" minOccurs="0" />
        <element name="flyOver" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="waypoint" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="radarGuidance" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="facilityMakeup" type="aixm:PointReferencePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <choice>
            <element name="pointChoice_fixDesignatedPoint" type="aixm:DesignatedPointPropertyType" nillable="true" minOccurs="0" />
            <element name="pointChoice_navaidSystem" type="aixm:NavaidPropertyType" nillable="true" minOccurs="0" />
            <element name="pointChoice_position" type="aixm:PointPropertyType" nillable="true" minOccurs="0" />
            <element name="pointChoice_runwayPoint" type="aixm:RunwayCentrelinePointPropertyType" nillable="true" minOccurs="0" />
            <element name="pointChoice_aimingPoint" type="aixm:TouchDownLiftOffPropertyType" nillable="true" minOccurs="0" />
            <element name="pointChoice_airportReferencePoint" type="aixm:AirportHeliportPropertyType" nillable="true" minOccurs="0" />
        </choice>
        <element name="extendedServiceVolume" type="aixm:RadioFrequencyAreaPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
reportingATC aixm:reportingATC 0 (1)
flyOver aixm:flyOver 0 (1)
waypoint aixm:waypoint 0 (1)
radarGuidance aixm:radarGuidance 0 (1)
facilityMakeup aixm:facilityMakeup 0 unbounded
pointChoice_fixDesignatedPoint aixm:pointChoice_fixDesignatedPoint 0 (1)
pointChoice_navaidSystem aixm:pointChoice_navaidSystem 0 (1)
pointChoice_position aixm:pointChoice_position 0 (1)
pointChoice_runwayPoint aixm:pointChoice_runwayPoint 0 (1)
pointChoice_aimingPoint aixm:pointChoice_aimingPoint 0 (1)
pointChoice_airportReferencePoint aixm:pointChoice_airportReferencePoint 0 (1)
extendedServiceVolume aixm:extendedServiceVolume 0 1
annotation aixm:annotation 0 unbounded
