Documentation for AIXM 5.1.1
Definition Type: Group
Name: ServicePropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

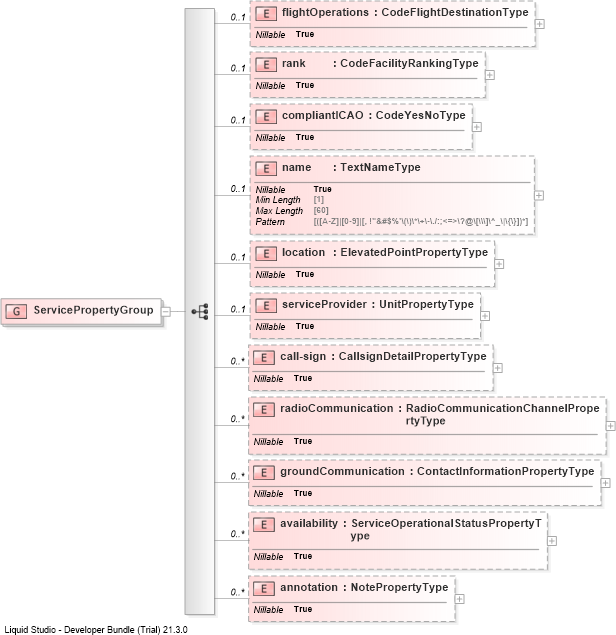

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into availabilityDrilldown into groundCommunicationDrilldown into radioCommunicationDrilldown into call-signDrilldown into serviceProviderDrilldown into locationDrilldown into nameDrilldown into compliantICAODrilldown into rankDrilldown into flightOperationsXSD Diagram of ServicePropertyGroup
Collapse XSD Schema Code:
<group name="ServicePropertyGroup">
    <sequence>
        <element name="flightOperations" type="aixm:CodeFlightDestinationType" nillable="true" minOccurs="0" />
        <element name="rank" type="aixm:CodeFacilityRankingType" nillable="true" minOccurs="0" />
        <element name="compliantICAO" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="name" type="aixm:TextNameType" nillable="true" minOccurs="0" />
        <element name="location" type="aixm:ElevatedPointPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="serviceProvider" type="aixm:UnitPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="call-sign" type="aixm:CallsignDetailPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="radioCommunication" type="aixm:RadioCommunicationChannelPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="groundCommunication" type="aixm:ContactInformationPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="availability" type="aixm:ServiceOperationalStatusPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
flightOperations aixm:flightOperations 0 (1)
rank aixm:rank 0 (1)
compliantICAO aixm:compliantICAO 0 (1)
name aixm:name 0 (1)
location aixm:location 0 1
serviceProvider aixm:serviceProvider 0 1
call-sign aixm:call-sign 0 unbounded
radioCommunication aixm:radioCommunication 0 unbounded
groundCommunication aixm:groundCommunication 0 unbounded
availability aixm:availability 0 unbounded
annotation aixm:annotation 0 unbounded
