Documentation for AIXM 5.1.1
Definition Type: Element
Name: Shell
Namespace: http://www.opengis.net/gml/3.2
Type: gml:ShellType
Containing Schema: geometryPrimitives.xsd
Abstract
Documentation:
A shell is used to represent a single connected component of a solid boundary as specified in ISO 19107:2003, 6.3.8.
Every gml:surfaceMember references or contains one surface, i.e. any element which is substitutable for gml:AbstractSurface. In the context of a shell, the surfaces describe the boundary of the solid.
If provided, the aggregationType attribute shall have the value "set".

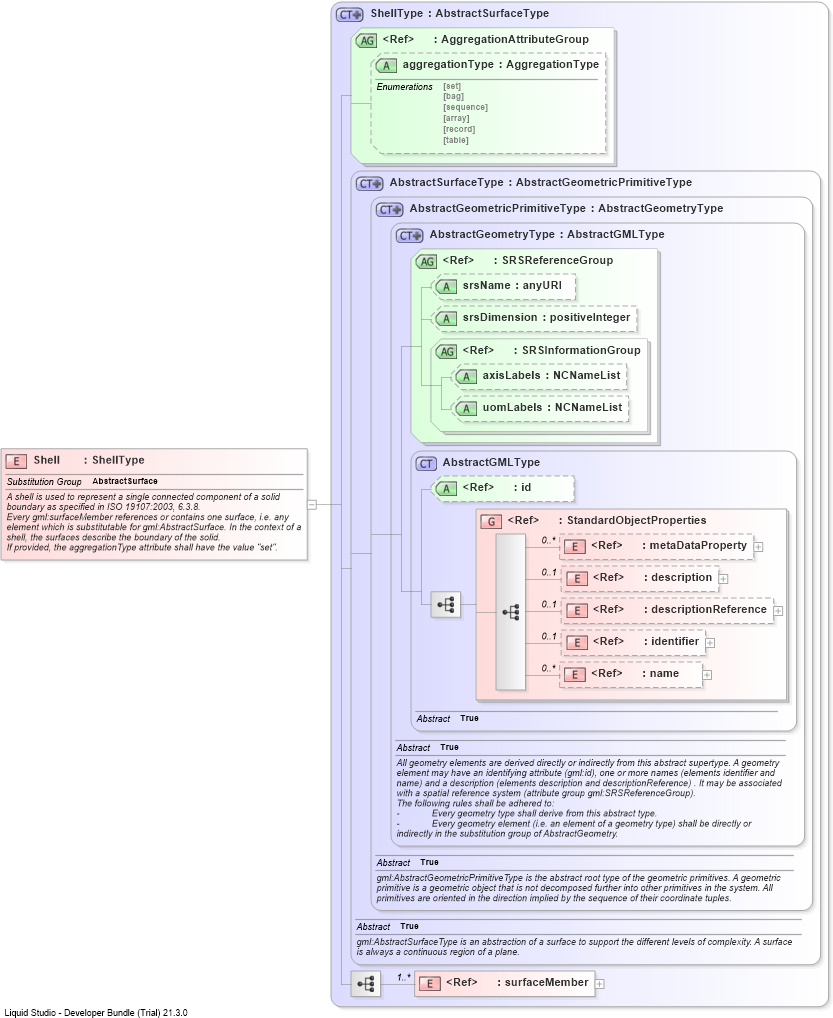

Collapse XSD Schema Diagram:
Drilldown into surfaceMemberDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractGMLTypeDrilldown into uomLabelsDrilldown into axisLabelsDrilldown into SRSInformationGroupDrilldown into srsDimensionDrilldown into srsNameDrilldown into SRSReferenceGroupDrilldown into AbstractGeometryTypeDrilldown into AbstractGeometricPrimitiveTypeDrilldown into AbstractSurfaceTypeDrilldown into aggregationTypeDrilldown into AggregationAttributeGroupDrilldown into ShellTypeXSD Diagram of Shell
Collapse XSD Schema Code:
<element name="Shell" type="gml:ShellType" substitutionGroup="gml:AbstractSurface">
    <annotation>
        <documentation>A shell is used to represent a single connected component of a solid boundary as specified in ISO 19107:2003, 6.3.8.
Every gml:surfaceMember references or contains one surface, i.e. any element which is substitutable for gml:AbstractSurface. In the context of a shell, the surfaces describe the boundary of the solid.
If provided, the aggregationType attribute shall have the value "set".
</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
surfaceMember gml:surfaceMember (1) unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
srsName gml:srsName (Optional)
srsDimension gml:srsDimension (Optional)
axisLabels gml:axisLabels (Optional)
uomLabels gml:uomLabels (Optional)
aggregationType gml:aggregationType (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractSurface
