Documentation for AIXM 5.1.1
Definition Type: Group
Name: SignificantPointInAirspacePropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

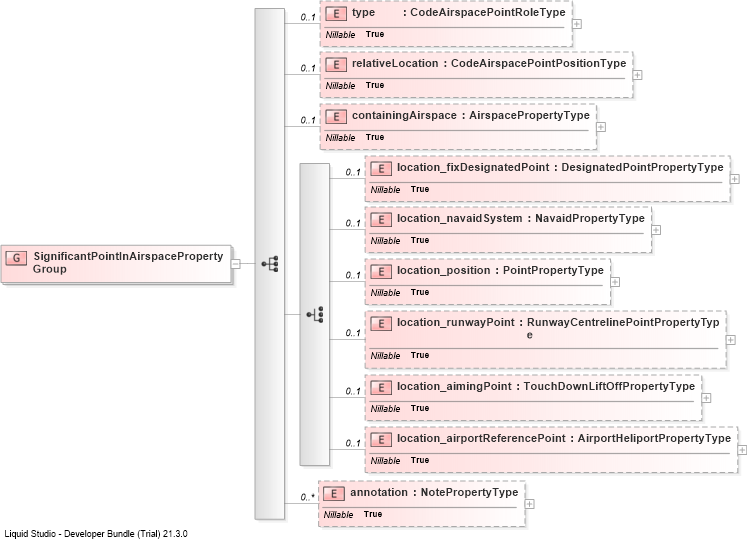

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into location_airportReferencePointDrilldown into location_aimingPointDrilldown into location_runwayPointDrilldown into location_positionDrilldown into location_navaidSystemDrilldown into location_fixDesignatedPointDrilldown into containingAirspaceDrilldown into relativeLocationDrilldown into typeXSD Diagram of SignificantPointInAirspacePropertyGroup
Collapse XSD Schema Code:
<group name="SignificantPointInAirspacePropertyGroup">
    <sequence>
        <element name="type" type="aixm:CodeAirspacePointRoleType" nillable="true" minOccurs="0" />
        <element name="relativeLocation" type="aixm:CodeAirspacePointPositionType" nillable="true" minOccurs="0" />
        <element name="containingAirspace" type="aixm:AirspacePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <choice>
            <element name="location_fixDesignatedPoint" type="aixm:DesignatedPointPropertyType" nillable="true" minOccurs="0" />
            <element name="location_navaidSystem" type="aixm:NavaidPropertyType" nillable="true" minOccurs="0" />
            <element name="location_position" type="aixm:PointPropertyType" nillable="true" minOccurs="0" />
            <element name="location_runwayPoint" type="aixm:RunwayCentrelinePointPropertyType" nillable="true" minOccurs="0" />
            <element name="location_aimingPoint" type="aixm:TouchDownLiftOffPropertyType" nillable="true" minOccurs="0" />
            <element name="location_airportReferencePoint" type="aixm:AirportHeliportPropertyType" nillable="true" minOccurs="0" />
        </choice>
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
type aixm:type 0 (1)
relativeLocation aixm:relativeLocation 0 (1)
containingAirspace aixm:containingAirspace 0 1
location_fixDesignatedPoint aixm:location_fixDesignatedPoint 0 (1)
location_navaidSystem aixm:location_navaidSystem 0 (1)
location_position aixm:location_position 0 (1)
location_runwayPoint aixm:location_runwayPoint 0 (1)
location_aimingPoint aixm:location_aimingPoint 0 (1)
location_airportReferencePoint aixm:location_airportReferencePoint 0 (1)
annotation aixm:annotation 0 unbounded
