Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: simple
Namespace: http://www.w3.org/1999/xlink
Containing Schema: xlink.xsd
Abstract
Documentation:
Intended for use as the type of user-declared elements to make them
simple links.

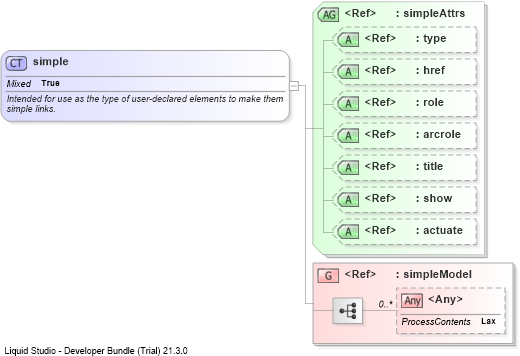

Collapse XSD Schema Diagram:
Drilldown into simpleModelDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsXSD Diagram of simple
Collapse XSD Schema Code:
<xs:complexType mixed="true" name="simple">
    <xs:annotation>
        <xs:documentation>
    Intended for use as the type of user-declared elements to make them
    simple links.
   </xs:documentation>
    </xs:annotation>
    <xs:group ref="xlink:simpleModel" />
    <xs:attributeGroup ref="xlink:simpleAttrs" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:any> 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
