Documentation for AIXM 5.1.1
Definition Type: Element
Name: Solid
Namespace: http://www.opengis.net/gml/3.2
Type: gml:SolidType
Containing Schema: geometryPrimitives.xsd
Abstract
Documentation:
A solid is the basis for 3-dimensional geometry. The extent of a solid is defined by the boundary surfaces as specified in ISO 19107:2003, 6.3.18. exterior specifies the outer boundary, interior the inner boundary of the solid.

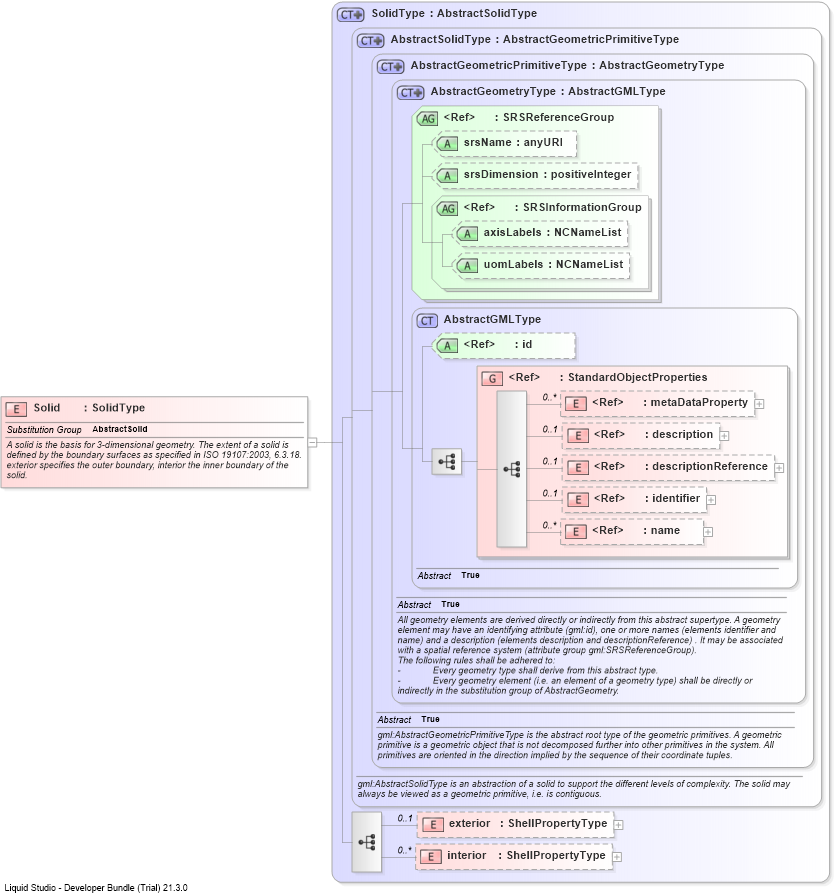

Collapse XSD Schema Diagram:
Drilldown into interiorDrilldown into exteriorDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractGMLTypeDrilldown into uomLabelsDrilldown into axisLabelsDrilldown into SRSInformationGroupDrilldown into srsDimensionDrilldown into srsNameDrilldown into SRSReferenceGroupDrilldown into AbstractGeometryTypeDrilldown into AbstractGeometricPrimitiveTypeDrilldown into AbstractSolidTypeDrilldown into SolidTypeXSD Diagram of Solid
Collapse XSD Schema Code:
<element name="Solid" type="gml:SolidType" substitutionGroup="gml:AbstractSolid">
    <annotation>
        <documentation>A solid is the basis for 3-dimensional geometry. The extent of a solid is defined by the boundary surfaces as specified in ISO 19107:2003, 6.3.18. exterior specifies the outer boundary, interior the inner boundary of the solid.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
exterior gml:exterior 0 (1)
interior gml:interior 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
srsName gml:srsName (Optional)
srsDimension gml:srsDimension (Optional)
axisLabels gml:axisLabels (Optional)
uomLabels gml:uomLabels (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractSolid
