Documentation for AIXM 5.1.1
Definition Type: Group
Name: SpecialNavigationStationPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

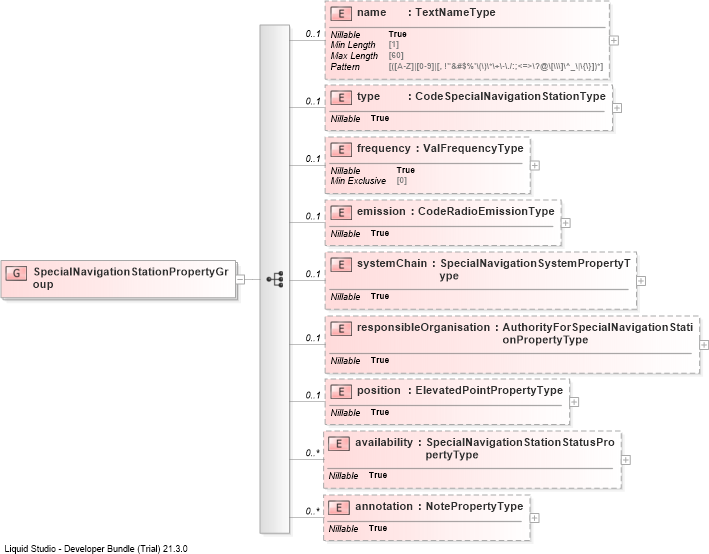

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into availabilityDrilldown into positionDrilldown into responsibleOrganisationDrilldown into systemChainDrilldown into emissionDrilldown into frequencyDrilldown into typeDrilldown into nameXSD Diagram of SpecialNavigationStationPropertyGroup
Collapse XSD Schema Code:
<group name="SpecialNavigationStationPropertyGroup">
    <sequence>
        <element name="name" type="aixm:TextNameType" nillable="true" minOccurs="0" />
        <element name="type" type="aixm:CodeSpecialNavigationStationType" nillable="true" minOccurs="0" />
        <element name="frequency" type="aixm:ValFrequencyType" nillable="true" minOccurs="0" />
        <element name="emission" type="aixm:CodeRadioEmissionType" nillable="true" minOccurs="0" />
        <element name="systemChain" type="aixm:SpecialNavigationSystemPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="responsibleOrganisation" type="aixm:AuthorityForSpecialNavigationStationPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="position" type="aixm:ElevatedPointPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="availability" type="aixm:SpecialNavigationStationStatusPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name aixm:name 0 (1)
type aixm:type 0 (1)
frequency aixm:frequency 0 (1)
emission aixm:emission 0 (1)
systemChain aixm:systemChain 0 1
responsibleOrganisation aixm:responsibleOrganisation 0 1
position aixm:position 0 1
availability aixm:availability 0 unbounded
annotation aixm:annotation 0 unbounded
