Documentation for AIXM 5.1.1
Definition Type: Group
Name: SpecialNavigationSystemPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

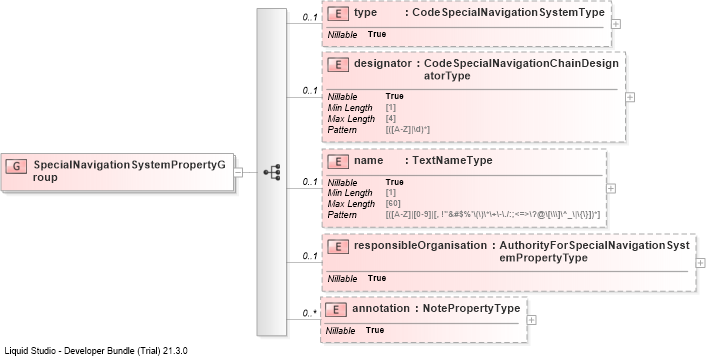

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into responsibleOrganisationDrilldown into nameDrilldown into designatorDrilldown into typeXSD Diagram of SpecialNavigationSystemPropertyGroup
Collapse XSD Schema Code:
<group name="SpecialNavigationSystemPropertyGroup">
    <sequence>
        <element name="type" type="aixm:CodeSpecialNavigationSystemType" nillable="true" minOccurs="0" />
        <element name="designator" type="aixm:CodeSpecialNavigationChainDesignatorType" nillable="true" minOccurs="0" />
        <element name="name" type="aixm:TextNameType" nillable="true" minOccurs="0" />
        <element name="responsibleOrganisation" type="aixm:AuthorityForSpecialNavigationSystemPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
type aixm:type 0 (1)
designator aixm:designator 0 (1)
name aixm:name 0 (1)
responsibleOrganisation aixm:responsibleOrganisation 0 1
annotation aixm:annotation 0 unbounded
