Documentation for AIXM 5.1.1
Definition Type: Group
Name: StandardLevelColumnPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

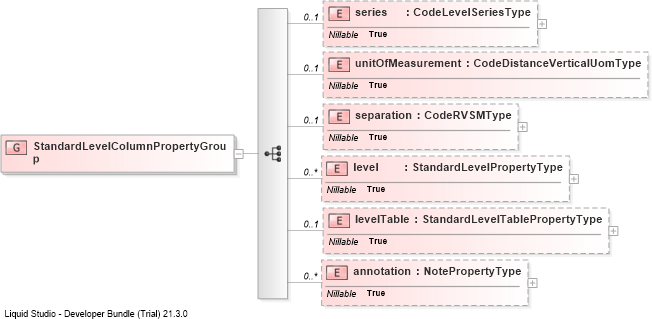

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into levelTableDrilldown into levelDrilldown into separationDrilldown into unitOfMeasurementDrilldown into seriesXSD Diagram of StandardLevelColumnPropertyGroup
Collapse XSD Schema Code:
<group name="StandardLevelColumnPropertyGroup">
    <sequence>
        <element name="series" type="aixm:CodeLevelSeriesType" nillable="true" minOccurs="0" />
        <element name="unitOfMeasurement" type="aixm:CodeDistanceVerticalUomType" nillable="true" minOccurs="0" />
        <element name="separation" type="aixm:CodeRVSMType" nillable="true" minOccurs="0" />
        <element name="level" type="aixm:StandardLevelPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="levelTable" type="aixm:StandardLevelTablePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
series aixm:series 0 (1)
unitOfMeasurement aixm:unitOfMeasurement 0 (1)
separation aixm:separation 0 (1)
level aixm:level 0 unbounded
levelTable aixm:levelTable 0 1
annotation aixm:annotation 0 unbounded
