Documentation for AIXM 5.1.1
Definition Type: Group
Name: StandardLevelSectorPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

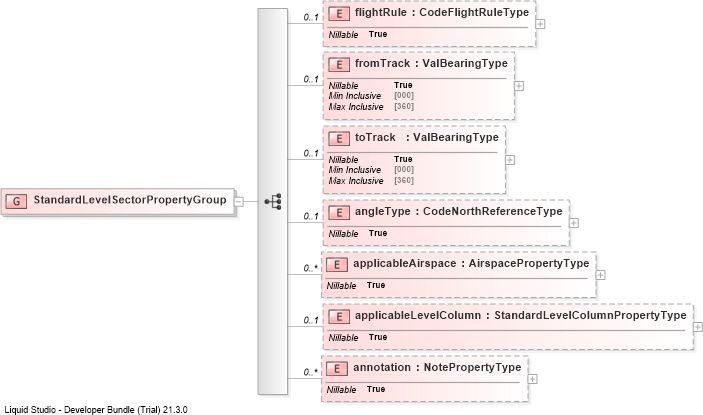

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into applicableLevelColumnDrilldown into applicableAirspaceDrilldown into angleTypeDrilldown into toTrackDrilldown into fromTrackDrilldown into flightRuleXSD Diagram of StandardLevelSectorPropertyGroup
Collapse XSD Schema Code:
<group name="StandardLevelSectorPropertyGroup">
    <sequence>
        <element name="flightRule" type="aixm:CodeFlightRuleType" nillable="true" minOccurs="0" />
        <element name="fromTrack" type="aixm:ValBearingType" nillable="true" minOccurs="0" />
        <element name="toTrack" type="aixm:ValBearingType" nillable="true" minOccurs="0" />
        <element name="angleType" type="aixm:CodeNorthReferenceType" nillable="true" minOccurs="0" />
        <element name="applicableAirspace" type="aixm:AirspacePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="applicableLevelColumn" type="aixm:StandardLevelColumnPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
flightRule aixm:flightRule 0 (1)
fromTrack aixm:fromTrack 0 (1)
toTrack aixm:toTrack 0 (1)
angleType aixm:angleType 0 (1)
applicableAirspace aixm:applicableAirspace 0 unbounded
applicableLevelColumn aixm:applicableLevelColumn 0 1
annotation aixm:annotation 0 unbounded
