Documentation for AIXM 5.1.1
Definition Type: Group
Name: SurfaceCharacteristicsPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

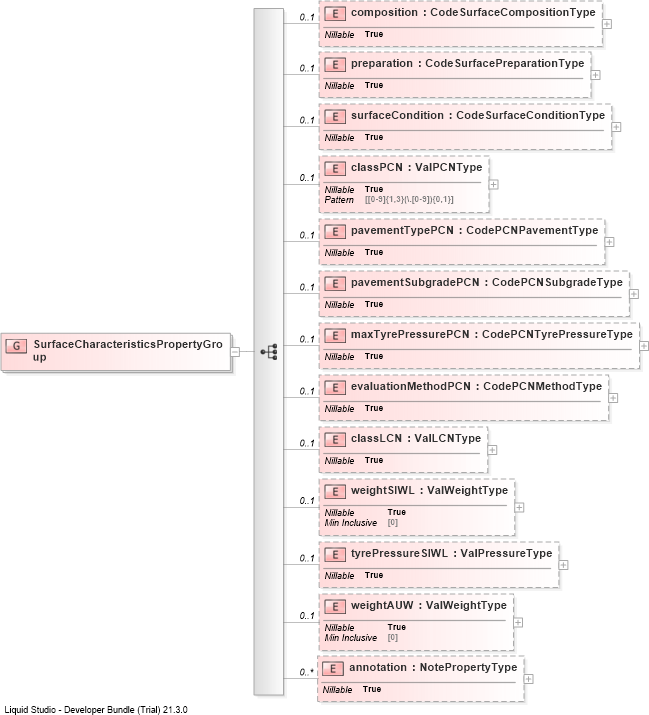

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into weightAUWDrilldown into tyrePressureSIWLDrilldown into weightSIWLDrilldown into classLCNDrilldown into evaluationMethodPCNDrilldown into maxTyrePressurePCNDrilldown into pavementSubgradePCNDrilldown into pavementTypePCNDrilldown into classPCNDrilldown into surfaceConditionDrilldown into preparationDrilldown into compositionXSD Diagram of SurfaceCharacteristicsPropertyGroup
Collapse XSD Schema Code:
<group name="SurfaceCharacteristicsPropertyGroup">
    <sequence>
        <element name="composition" type="aixm:CodeSurfaceCompositionType" nillable="true" minOccurs="0" />
        <element name="preparation" type="aixm:CodeSurfacePreparationType" nillable="true" minOccurs="0" />
        <element name="surfaceCondition" type="aixm:CodeSurfaceConditionType" nillable="true" minOccurs="0" />
        <element name="classPCN" type="aixm:ValPCNType" nillable="true" minOccurs="0" />
        <element name="pavementTypePCN" type="aixm:CodePCNPavementType" nillable="true" minOccurs="0" />
        <element name="pavementSubgradePCN" type="aixm:CodePCNSubgradeType" nillable="true" minOccurs="0" />
        <element name="maxTyrePressurePCN" type="aixm:CodePCNTyrePressureType" nillable="true" minOccurs="0" />
        <element name="evaluationMethodPCN" type="aixm:CodePCNMethodType" nillable="true" minOccurs="0" />
        <element name="classLCN" type="aixm:ValLCNType" nillable="true" minOccurs="0" />
        <element name="weightSIWL" type="aixm:ValWeightType" nillable="true" minOccurs="0" />
        <element name="tyrePressureSIWL" type="aixm:ValPressureType" nillable="true" minOccurs="0" />
        <element name="weightAUW" type="aixm:ValWeightType" nillable="true" minOccurs="0" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
composition aixm:composition 0 (1)
preparation aixm:preparation 0 (1)
surfaceCondition aixm:surfaceCondition 0 (1)
classPCN aixm:classPCN 0 (1)
pavementTypePCN aixm:pavementTypePCN 0 (1)
pavementSubgradePCN aixm:pavementSubgradePCN 0 (1)
maxTyrePressurePCN aixm:maxTyrePressurePCN 0 (1)
evaluationMethodPCN aixm:evaluationMethodPCN 0 (1)
classLCN aixm:classLCN 0 (1)
weightSIWL aixm:weightSIWL 0 (1)
tyrePressureSIWL aixm:tyrePressureSIWL 0 (1)
weightAUW aixm:weightAUW 0 (1)
annotation aixm:annotation 0 unbounded
