Definition Type: Group
Name: SurfaceContaminationLayerPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

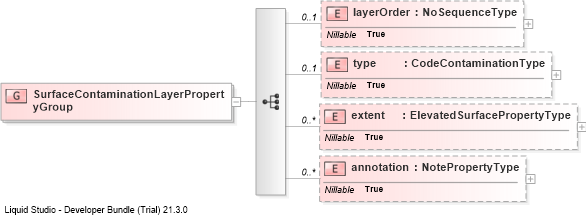

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into extentDrilldown into typeDrilldown into layerOrderXSD Diagram of SurfaceContaminationLayerPropertyGroup
Collapse XSD Schema Code:
<group name="SurfaceContaminationLayerPropertyGroup">
    <sequence>
        <element name="layerOrder" type="aixm:NoSequenceType" nillable="true" minOccurs="0" />
        <element name="type" type="aixm:CodeContaminationType" nillable="true" minOccurs="0" />
        <element name="extent" type="aixm:ElevatedSurfacePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
layerOrder aixm:layerOrder 0 (1)
type aixm:type 0 (1)
extent aixm:extent 0 unbounded
annotation aixm:annotation 0 unbounded
