Documentation for AIXM 5.1.1
Definition Type: Group
Name: SurfaceContaminationPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

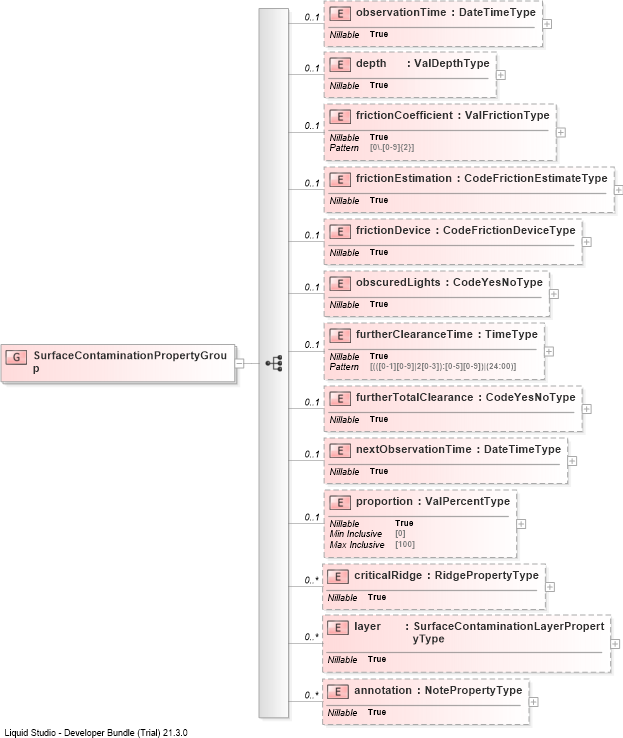

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into layerDrilldown into criticalRidgeDrilldown into proportionDrilldown into nextObservationTimeDrilldown into furtherTotalClearanceDrilldown into furtherClearanceTimeDrilldown into obscuredLightsDrilldown into frictionDeviceDrilldown into frictionEstimationDrilldown into frictionCoefficientDrilldown into depthDrilldown into observationTimeXSD Diagram of SurfaceContaminationPropertyGroup
Collapse XSD Schema Code:
<group name="SurfaceContaminationPropertyGroup">
    <sequence>
        <element name="observationTime" type="aixm:DateTimeType" nillable="true" minOccurs="0" />
        <element name="depth" type="aixm:ValDepthType" nillable="true" minOccurs="0" />
        <element name="frictionCoefficient" type="aixm:ValFrictionType" nillable="true" minOccurs="0" />
        <element name="frictionEstimation" type="aixm:CodeFrictionEstimateType" nillable="true" minOccurs="0" />
        <element name="frictionDevice" type="aixm:CodeFrictionDeviceType" nillable="true" minOccurs="0" />
        <element name="obscuredLights" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="furtherClearanceTime" type="aixm:TimeType" nillable="true" minOccurs="0" />
        <element name="furtherTotalClearance" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="nextObservationTime" type="aixm:DateTimeType" nillable="true" minOccurs="0" />
        <element name="proportion" type="aixm:ValPercentType" nillable="true" minOccurs="0" />
        <element name="criticalRidge" type="aixm:RidgePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="layer" type="aixm:SurfaceContaminationLayerPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
observationTime aixm:observationTime 0 (1)
depth aixm:depth 0 (1)
frictionCoefficient aixm:frictionCoefficient 0 (1)
frictionEstimation aixm:frictionEstimation 0 (1)
frictionDevice aixm:frictionDevice 0 (1)
obscuredLights aixm:obscuredLights 0 (1)
furtherClearanceTime aixm:furtherClearanceTime 0 (1)
furtherTotalClearance aixm:furtherTotalClearance 0 (1)
nextObservationTime aixm:nextObservationTime 0 (1)
proportion aixm:proportion 0 (1)
criticalRidge aixm:criticalRidge 0 unbounded
layer aixm:layer 0 unbounded
annotation aixm:annotation 0 unbounded
