Documentation for AIXM 5.1.1
Definition Type: Element
Name: surfaceProperty
Namespace: http://www.opengis.net/gml/3.2
Type: gml:SurfacePropertyType
Containing Schema: geometryBasic2d.xsd
Abstract
Documentation:
This property element either references a surface via the XLink-attributes or contains the surface element. surfaceProperty is the predefined property which may be used by GML Application Schemas whenever a GML feature has a property with a value that is substitutable for AbstractSurface.

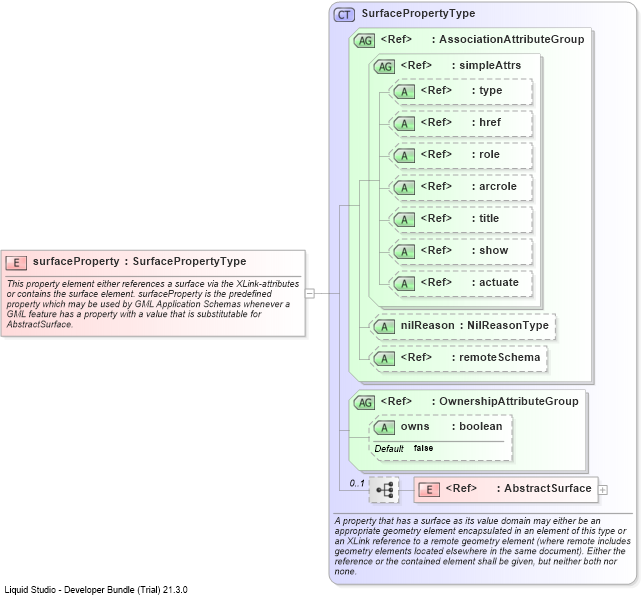

Collapse XSD Schema Diagram:
Drilldown into AbstractSurfaceDrilldown into ownsDrilldown into OwnershipAttributeGroupDrilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupDrilldown into SurfacePropertyTypeXSD Diagram of surfaceProperty
Collapse XSD Schema Code:
<element name="surfaceProperty" type="gml:SurfacePropertyType">
    <annotation>
        <documentation>This property element either references a surface via the XLink-attributes or contains the surface element. surfaceProperty is the predefined property which may be used by GML Application Schemas whenever a GML feature has a property with a value that is substitutable for AbstractSurface.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AbstractSurface gml:AbstractSurface (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
owns gml:owns false (Optional)
Collapse Derivation Tree:
