Documentation for AIXM 5.1.1
Definition Type: Group
Name: SurveyControlPointPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

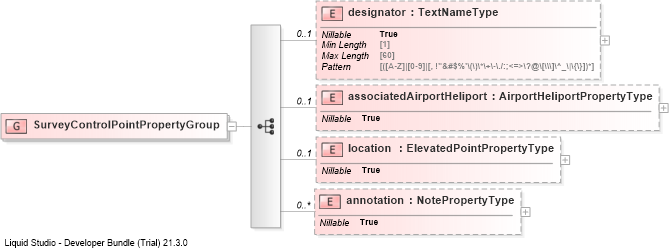

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into locationDrilldown into associatedAirportHeliportDrilldown into designatorXSD Diagram of SurveyControlPointPropertyGroup
Collapse XSD Schema Code:
<group name="SurveyControlPointPropertyGroup">
    <sequence>
        <element name="designator" type="aixm:TextNameType" nillable="true" minOccurs="0" />
        <element name="associatedAirportHeliport" type="aixm:AirportHeliportPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="location" type="aixm:ElevatedPointPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
designator aixm:designator 0 (1)
associatedAirportHeliport aixm:associatedAirportHeliport 0 1
location aixm:location 0 1
annotation aixm:annotation 0 unbounded
