Documentation for AIXM 5.1.1
Definition Type: Group
Name: TaxiHoldingPositionLightSystemPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

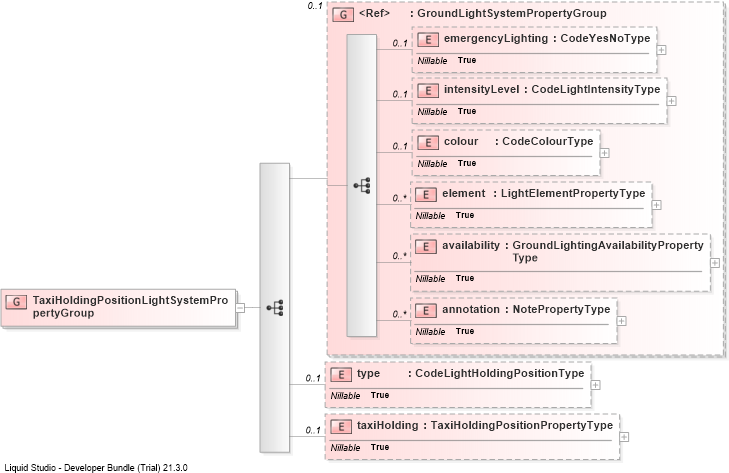

Collapse XSD Schema Diagram:
Drilldown into taxiHoldingDrilldown into typeDrilldown into annotationDrilldown into availabilityDrilldown into elementDrilldown into colourDrilldown into intensityLevelDrilldown into emergencyLightingDrilldown into GroundLightSystemPropertyGroupXSD Diagram of TaxiHoldingPositionLightSystemPropertyGroup
Collapse XSD Schema Code:
<group name="TaxiHoldingPositionLightSystemPropertyGroup">
    <sequence>
        <group ref="aixm:GroundLightSystemPropertyGroup" minOccurs="0" />
        <element name="type" type="aixm:CodeLightHoldingPositionType" nillable="true" minOccurs="0" />
        <element name="taxiHolding" type="aixm:TaxiHoldingPositionPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
emergencyLighting aixm:emergencyLighting 0 (1)
intensityLevel aixm:intensityLevel 0 (1)
colour aixm:colour 0 (1)
element aixm:element 0 unbounded
availability aixm:availability 0 unbounded
annotation aixm:annotation 0 unbounded
type aixm:type 0 (1)
taxiHolding aixm:taxiHolding 0 1
<xs:group> aixm:GroundLightSystemPropertyGroup 0 (1)
